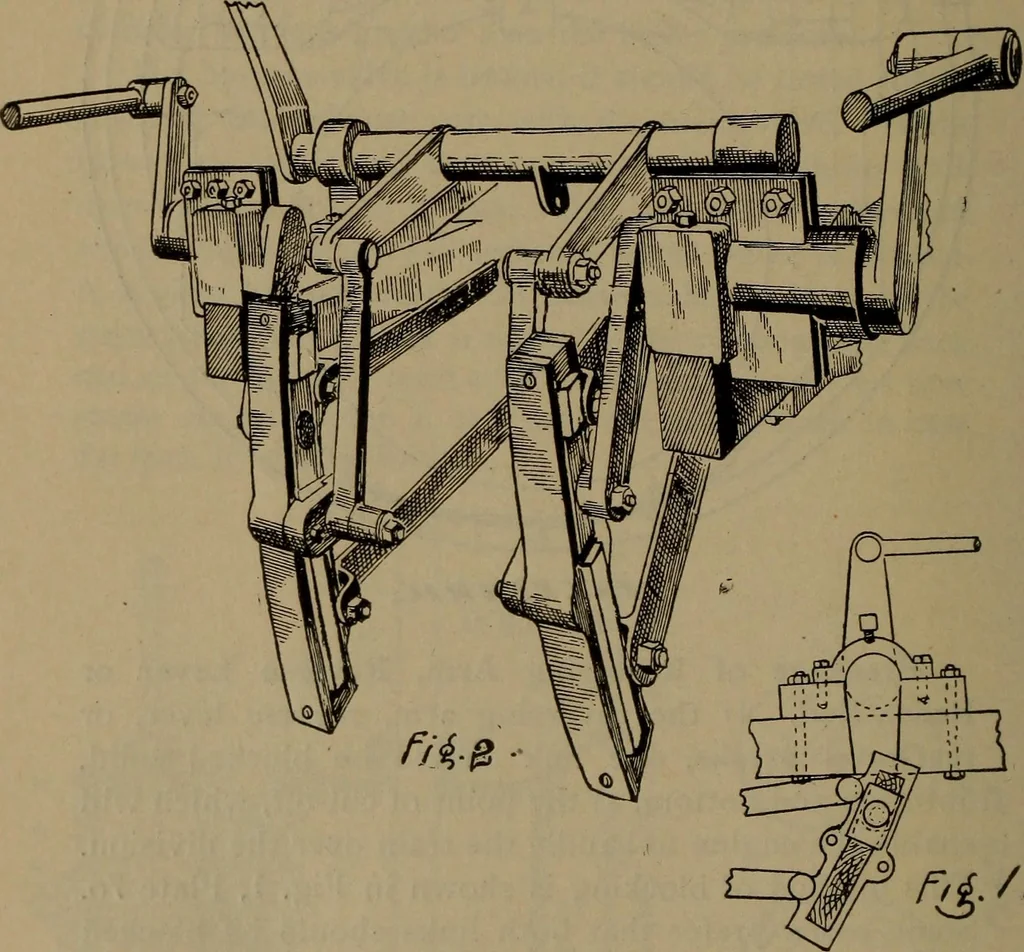

r theforward motion a small block is placed on top of bothlink blocks, and a long block under the link block inthe bottom of the link, and so fitted that there will bethree-quarters of an inch of play to accommodate theslip of the link block. If the engine is to be used in 194 BREAKDOWNS. the back… … PLATE 76-FIGS. 1 and 2.Broken Transmission Bar or Hanger. To dis-connect for a broken transmission bar, the broken partsshould be removed, the valve placed centrally upon itsseat and the valve-stem disconnected and clamped se-curely. BREAKDOWNS. 195 If a transmission bar hanger is broken, block…
