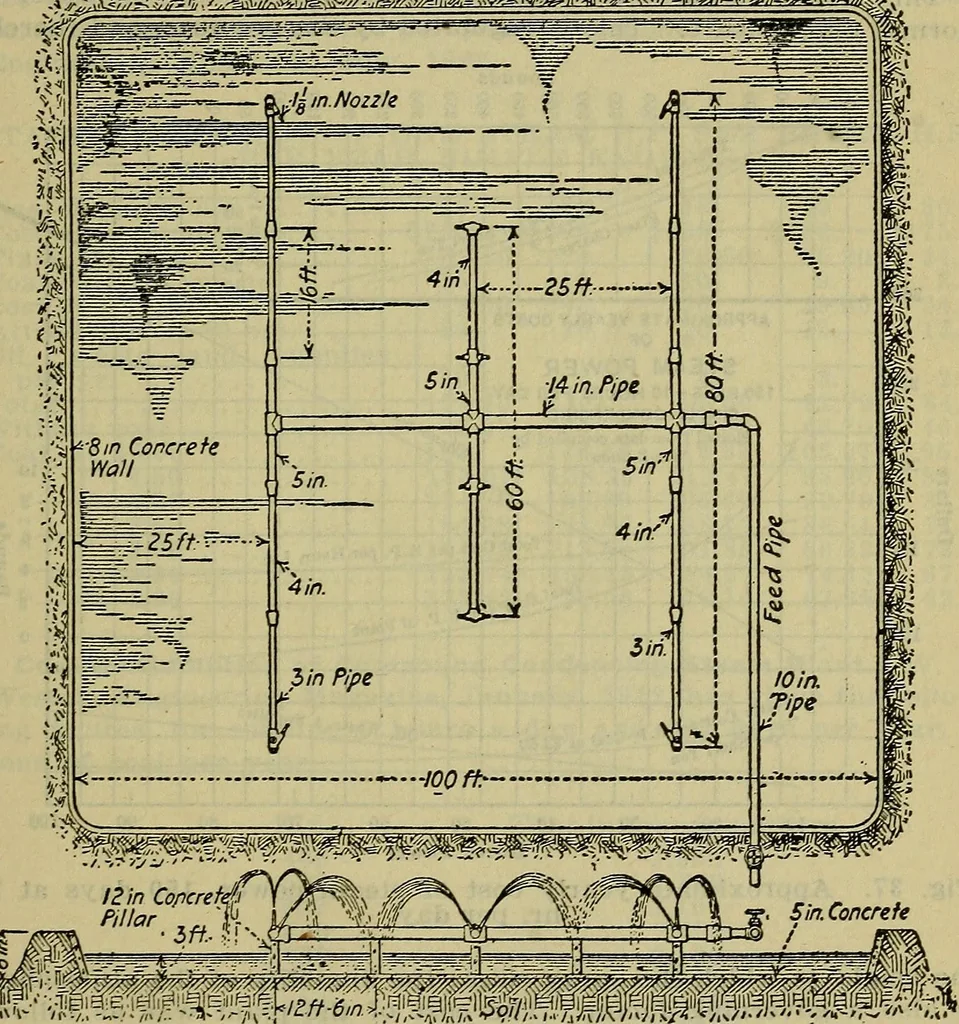

for the basin complete. Adding the cost of the specialequipment and piping to this amount, the total cost of a pond ofthis character would be about $2,105. On a similar basis for the 1000-kw. unit, assuming a steam con-sumption of 20 lbs. per kw.-hr., a ratio of circulating water tosteam condensed… … Pig. 36. Plan and elevation of cooling pond. the like, would be around $1,585. This installation would requirea pond 90 by 90 ft. or 65 by 125 ft., with an arrangement of 3 or 2lines of pipe having 4 or 6 groups of sprays of 5 nozzles eachper line. The cost of a concrete basin of these dimensions…
