The country house; a practical manual of the planning and construction of the American country home and its surroundings (1905)
Hooper, Charles Edward, 1867- · New York : Doubleday, Page & company · leaf 250

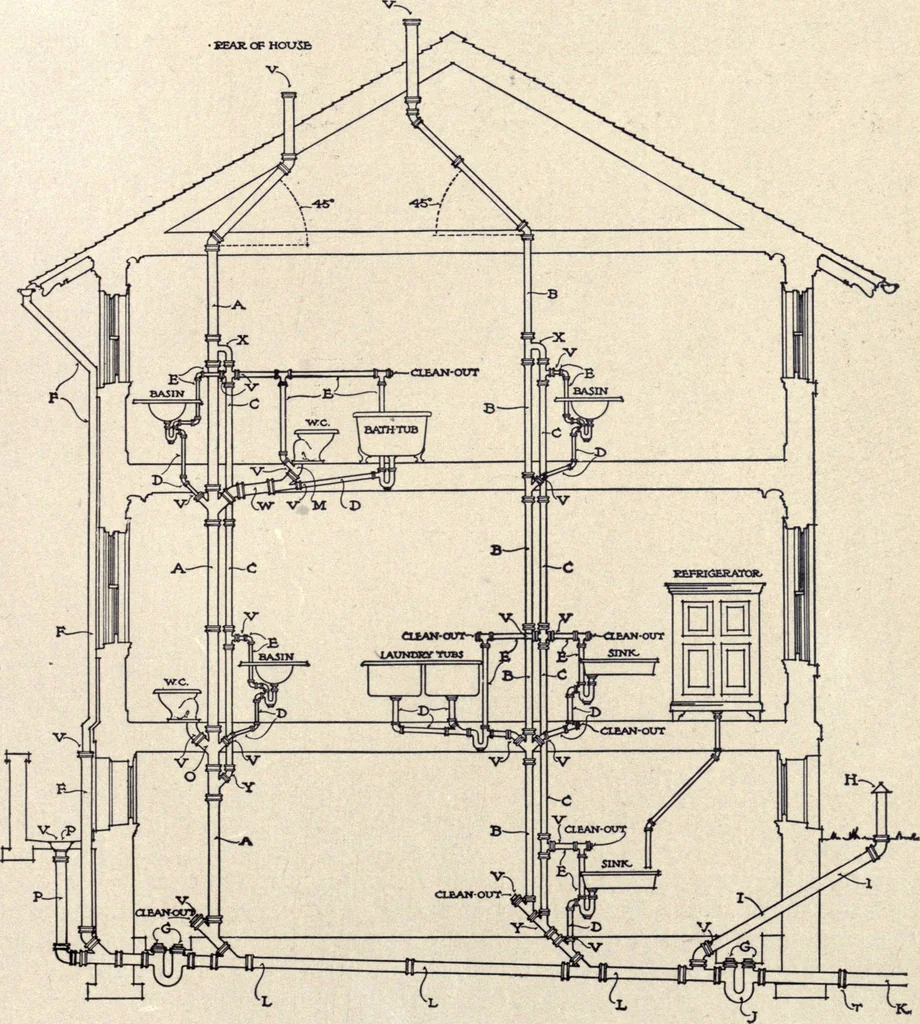

refrigerator should not enter the house drain, as it addsone more possible source of trouble, and is not at all necessary, as the waterdischarged is harmless. It should empty into the cellar sink, and may be con-nected with the overflow pipe from the attic tank if convenient. The system which… … Fig. 42. Section showing the installation of the back-vent system A. Soil line D. Branch water pipes B. Main waste E. Branch vent C. Main vent F. Rainwater leader G. Removable tap screwsH. CapI. Fresh air inlet J. House trapK. House sewerL. House drain M. Branch soilN. Screw capF. Area drains T.…
Architecture, Domestic · Suburban homes · Gardens
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
