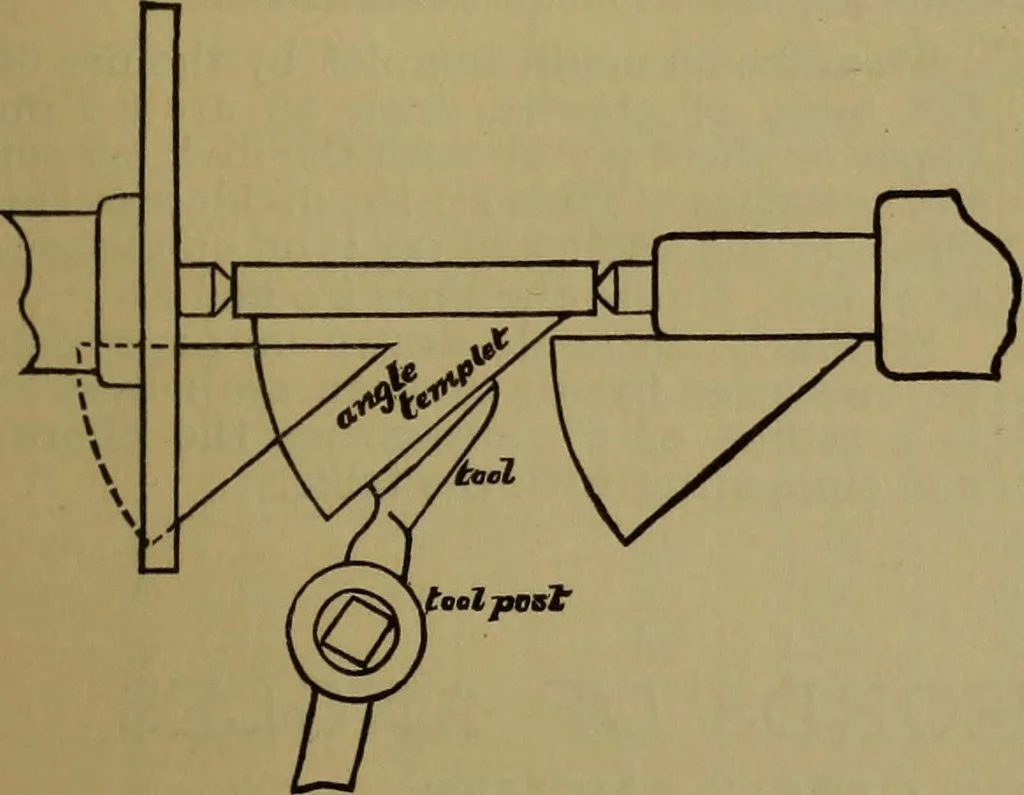

diameters, and from their intersection draw a conical line tothe center. Measure the center angle between either shaft and the conical line, and theproper increments will be found in the table at that center angle. If thecenter angle is less than 45°, the tabular angle increment must be dividedby… … 94 angle increment 1.43 X 40 1.631.6°, and the diameter increment = .20 Proceed separately with thebther gear of the pair by measuring and usingits center angle. ERRORS IN DIAMETER. It will often happen that the outside diameter will be turned too small, orthat a casting will not quite turn to the…
