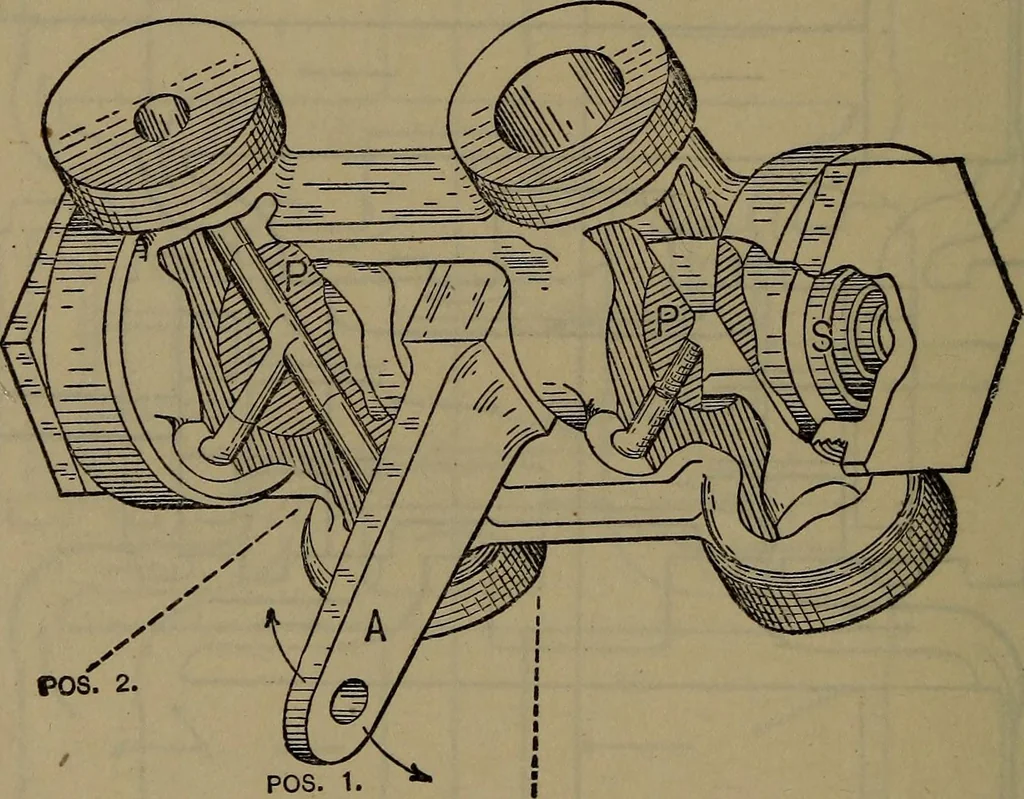

h pistons are at the 552 LOCOMOTIVE CATECHISM. crosshead end or back end of the cylinder; in Fig. 358, bothare at mid-stroke; in Fig. 359, both are at front or out ends;the arrows showing the direction of the live and exhauststeam in both pistons and in the valve chamber. Q. Describe the second… … POS. 3. Fig. 360. Baldwin (Vauclain) Combined Starting-Valveand Cylinder-Cock. which are two taper plugs P, P, one controlling the H. P.cylinder cock and the steam for starting, and the other con-trolling the L. P. cylinder cock. These plugs are held in placeby springs ^ and controlled by an arm A…
