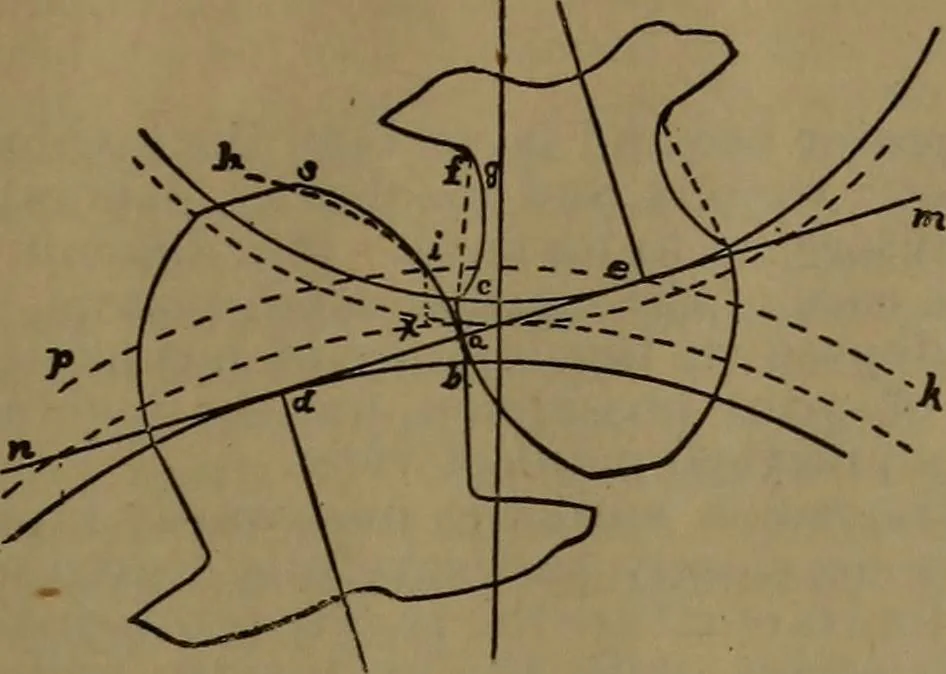

FIG. 19. THE NEW METHOD. 19 … FIG. 20. INTERFERENCE. Interference Table For one diametral pitch and 3 1-7 inch cir-cular pitch. Angle of action, 75°. Number of Teeth in the Mate.13 15 17 1912 14 16 18 21 Figure 20 shows the interference, its effect, and its correction. The working face of the involuteshould be Umited at i by…
