Handicraft for handy boys; : practical plans for work and play with many ideas for earning money, (1911)
Hall, A. Neely (Albert Neely), b. 1883, Hall, Norman P., ill · Boston, : Lothrop, Lee & Shepard · leaf 339

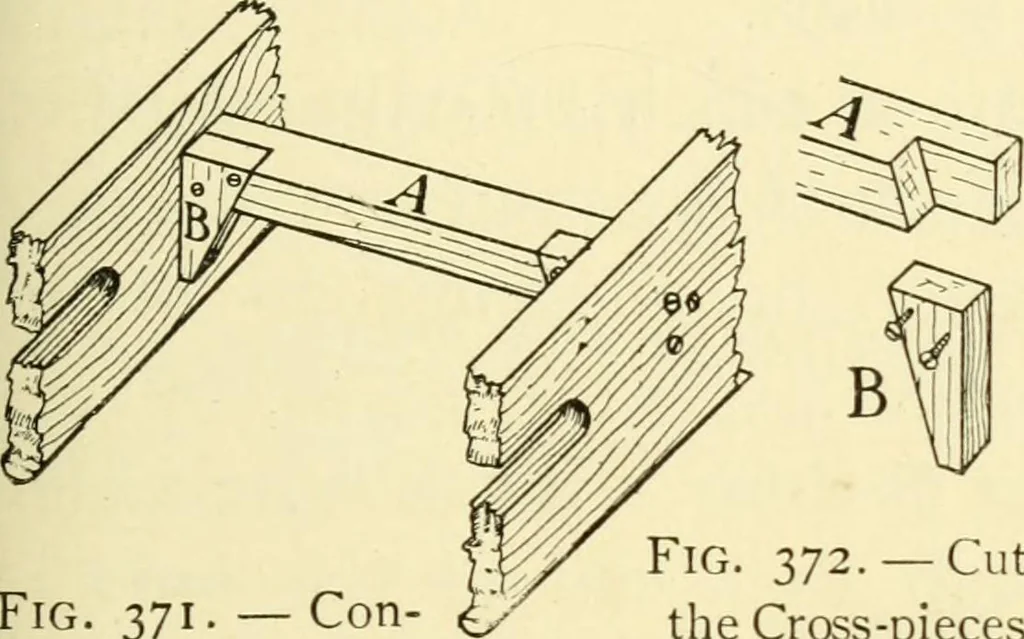

Five screws for eachrunner will be plenty. A COASTER AND A BOB-SLED 289 Cut the three Connecting Cross-pieces {A, Figs. 370 and 371) 12 incheslong, 2 inches wide, and i| inches thick and preparethe ends of each as shown at A (Fig. 372); then cut the six braces B (Figs.370 and 371) as shownm Fig.… … Fig. 371. — Con-nect the Runnerslike This. the runners. Fig. 372. — Cutthe Crass-pieces one II inches from the front end, another 7 inches fromthe rear end, and the third halfway between the two. Make the Seat in two pieces (a wide board would belikely to split) and screw the boards to the…
Woodwork · Toys · Amusements
