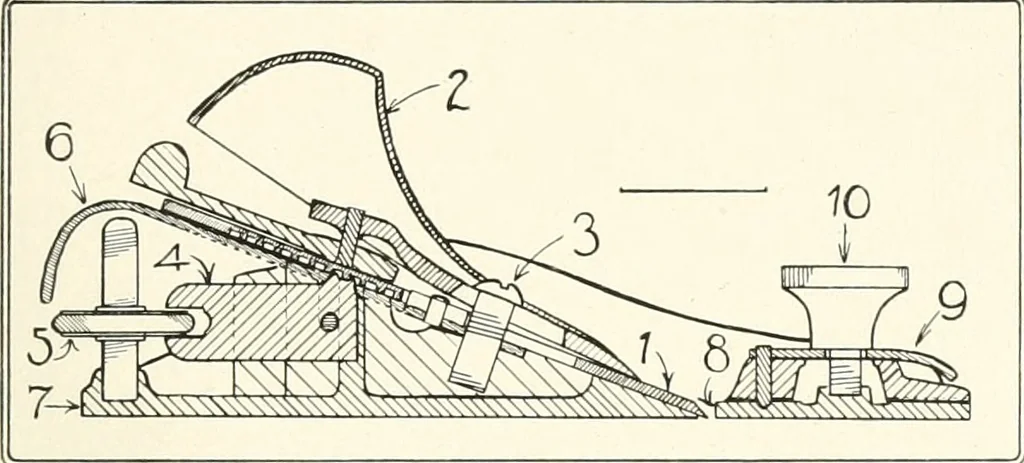

thrown downtight. Then, by turning the plane sole upward and glancing downit, the proper adjustments with the brass set-screw and lateral ad-justment lever are made. When the plane is not being used, it shouldrest either on a pillow (a little strip of wood in the bench trough),or on its side. In no… … Fig-. 108. Section of Block-Plane. The nai)ies of the parts of the Bailey block-pane are: 1. Cutter or bit or plane-iron. 2. Clamp or lever cap. 3. Cap-sereir. 4. Adjusting lever. 5. Adjusting nut. t). Lateral a<ljushnenf. 7. Bottom. 8. Moutli piece. 9. Eccentric plate.10. Knoh. The block-plane…
