Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 182

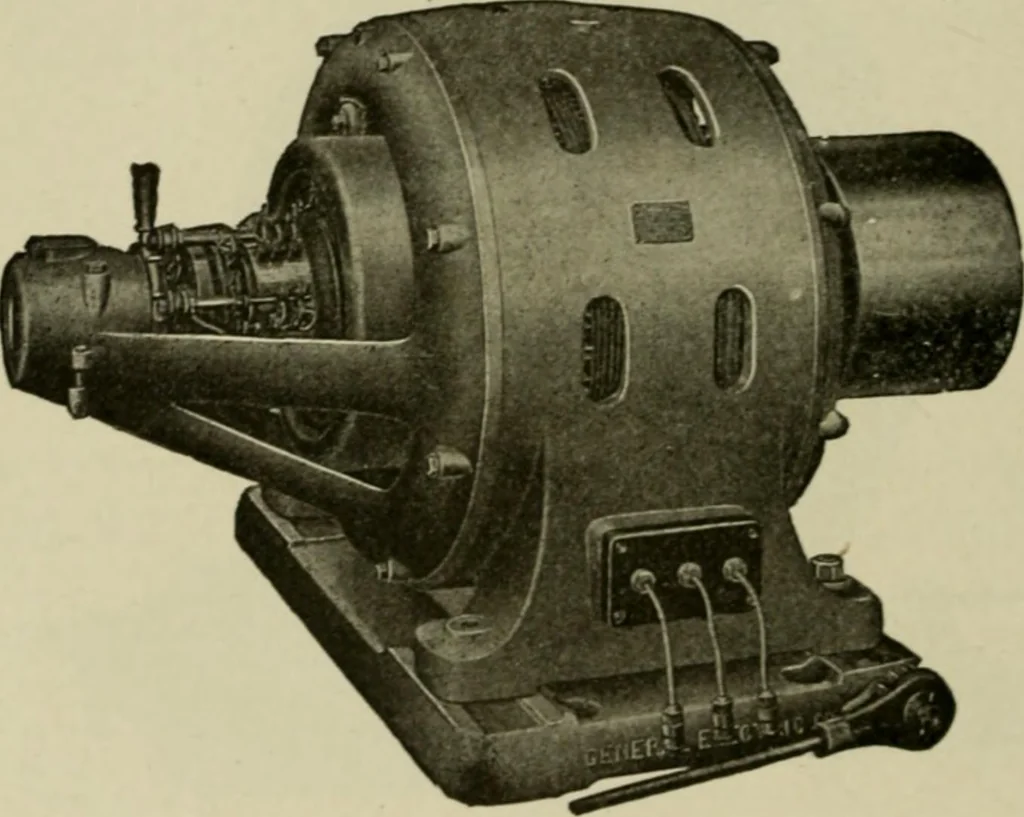

to be mounted be-tween the exciter and hub. In other designs the exciter isplaced between the bearing and hub. 1,170 HAWKINS ELECTRICITY Figs. 1,432 and 1,433 are examples of direct connected exciter alter-nators, in fig. 1,432 the exciter being placed between the field huband bearing, and in fig.… … Fig. 1.432.—General Electric alternator with direct connected exciter mounted on shaft between field hub and bearing. In the smaller sizes, the magnet frame is bolted to the Icet, but in the larger sizes special construction is used depending upon the met. The exciters are capable of furnishing the…
