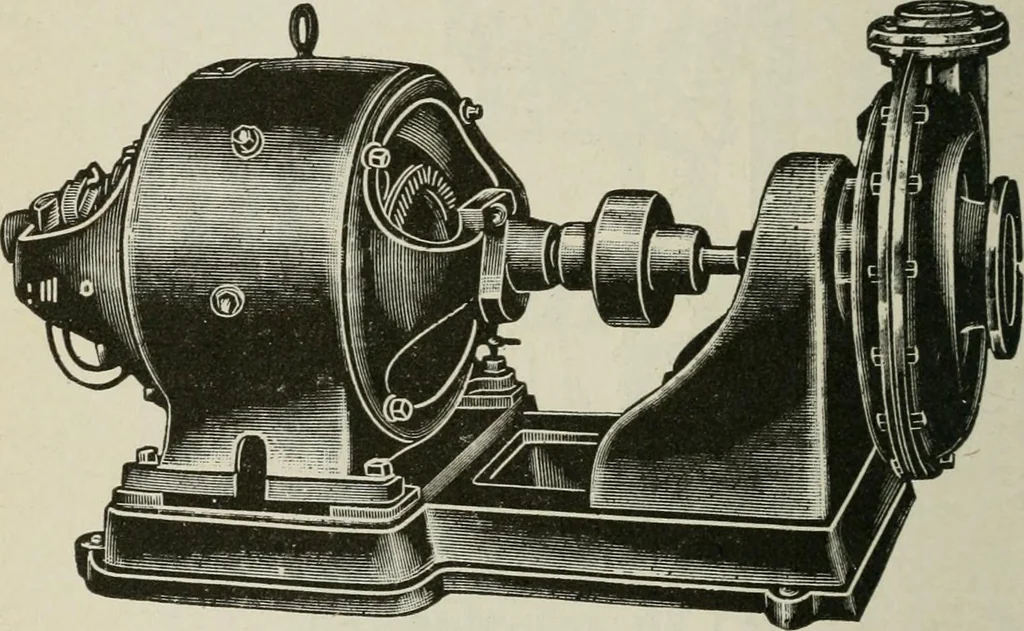

these two machines are mountedon one bed plate, directly connected by a flange coupling be-tween them. The motor shown, is almost identical with themachine illustrated. Fig. 217, and described on page 251. Thepump is so arranged that the discharge can be turned in anydirection desired. Wherever… … Fig. 241. DIRECT DRIVEN MOTOR PUMP. Fig. 242 shows a double pump driven directly, without gearsor belt, from the shaft of an electric motor. The pump cross-heads are connected directly to cranks at each end of the motorshaft. The cranks are set at right angles and each pump isdouble acting, or has…
