Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 459

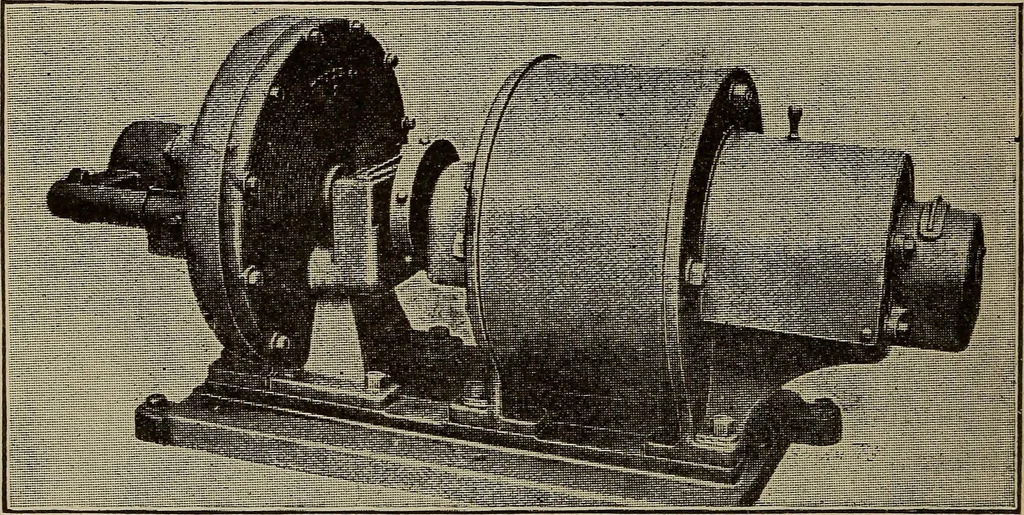

et steel casingfitting into grooves in the end plates The armature 446 LOCOMOTIVE ENGINEERING is mounted in self-adjusting bronze bearings. Thesebearings are lubricated by means of rings, the shafthaving spiral grooves to carry the oil throughout thebearings. Overflow oil holes are drilled in both… … Figure 219The Minature Turbine and Dynamo with kerosene. Care must be taken to have the oil ringsin the slots in the bronze bearings. To Adjust the Lamp. To adjust the lamp, first havethe correct speed on the dynamo, and the commutatorand brushes working properly, then set the adjustingscrew on the…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
