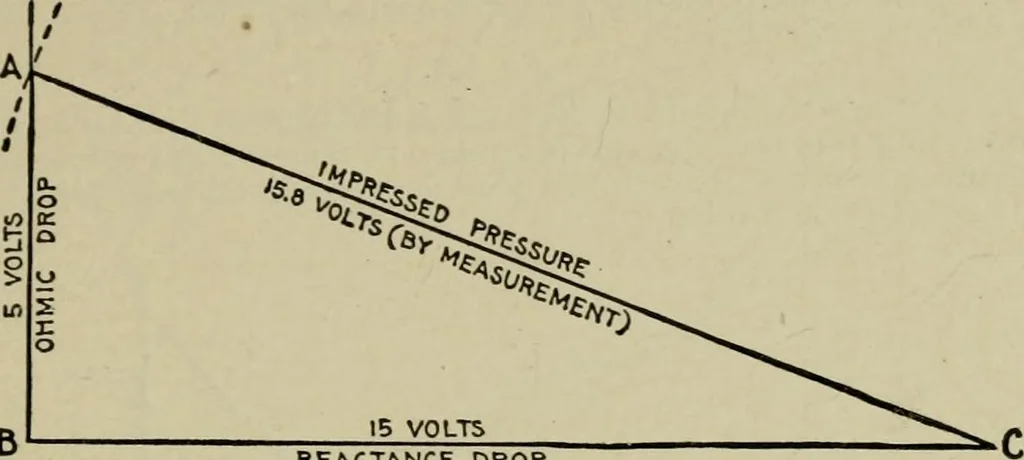

d of AB—simply to save space. ALTERNATING CURRENT DIAGRAMS 1,079 EXAMPLE.—In an alternating circuit, having an ohmic drop of 5volts and an impressed pressure of 15.8 volts, what is the reactance drop? In fig. 1,317, draw a horizontal line of indefinite length and at anypoint B erect a perpendicular… … REACTANCE DROP FlG. 1,318.—Diag-am for obtaining ohmic drop in the circuit fig. 1,316 when impressed pressureand reactance drop are given. Lay off BC to scale = reactance drop; draw AB at rightangle and of indefinite length; with C as center and radius of length = impressed pressure,describe an arc…
