Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 170

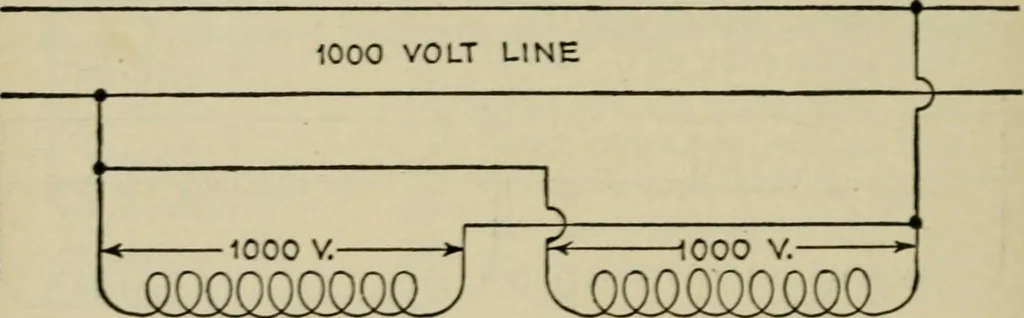

s of the case. Whenthe two sections of either winding are connected in parallel as shown infig. 1,987, care must be taken to connect corresponding ends of the twosections together. 1,428 HAWKINS ELECTRICITY Combining Transformers.—Two or more transformersbuilt to operate at the same pressure and… … -« 1000 V. *H < 50 v. sJ r 50 v. H 50 VOLTS Pig. 1,987.—Diagram of single phase transformer with primary and secondary windings of twosections each, showing voltages per section with parallel connection. Ques. What are the two principal precautions whichmust be observed in combining transformer…
Electrical engineering
