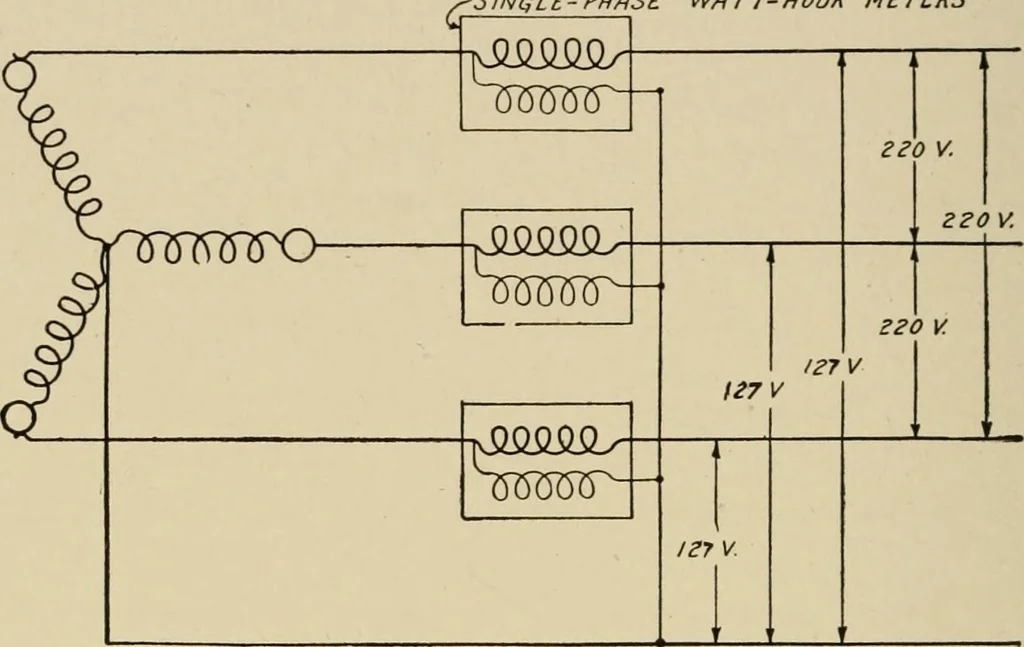

e a check on the accuracy of theother two. Three-Meter Method for Three-Wire Circuit. The energy de-livered in a star- or delta-connected three-wire three-phase circuitmay be measured with three watt-hour meters by the creation of anartificial neutral point, as shown in Fig. 81. For this purpose, a… … 3-FHASE 4-W/lfESTMK CON QEfi BALANCE]} OFUNBflLfiNCEn LO/JJ} Fig. 80. Star Connected Three-Phase Four-Wire Circuit with Three Watt-Hour Meters
