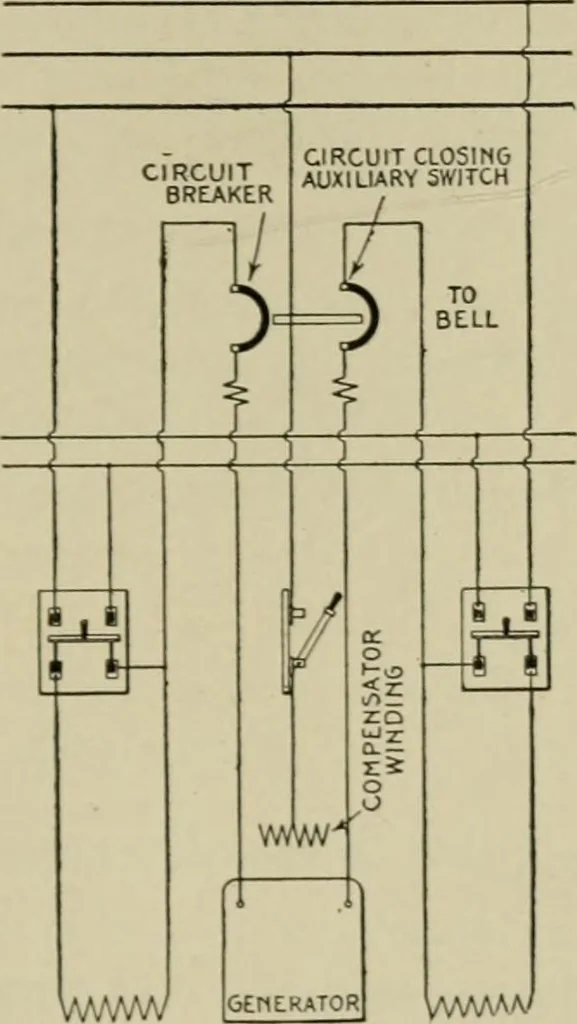

= x^ — — gee | h fc CURRENT AND PRESSURE LIMITING DEVICES 1,675 This device may be connected in series with the motor leads forvoltages up to 2,500; it is designed with an inverse time limit devicewhich may be adjusted to give the desired protection. The field for relays is more extensive for… … .7.7.7. \AM/VW Fig. 2.348.—Diagram showing three wire dynamo protected by double pole double coil over-load circuit breaker (or two single pole breakers with interlock) with bell alarm switches.Complete protection is secured as breaker is connected between armature and series field. obtained by the…
