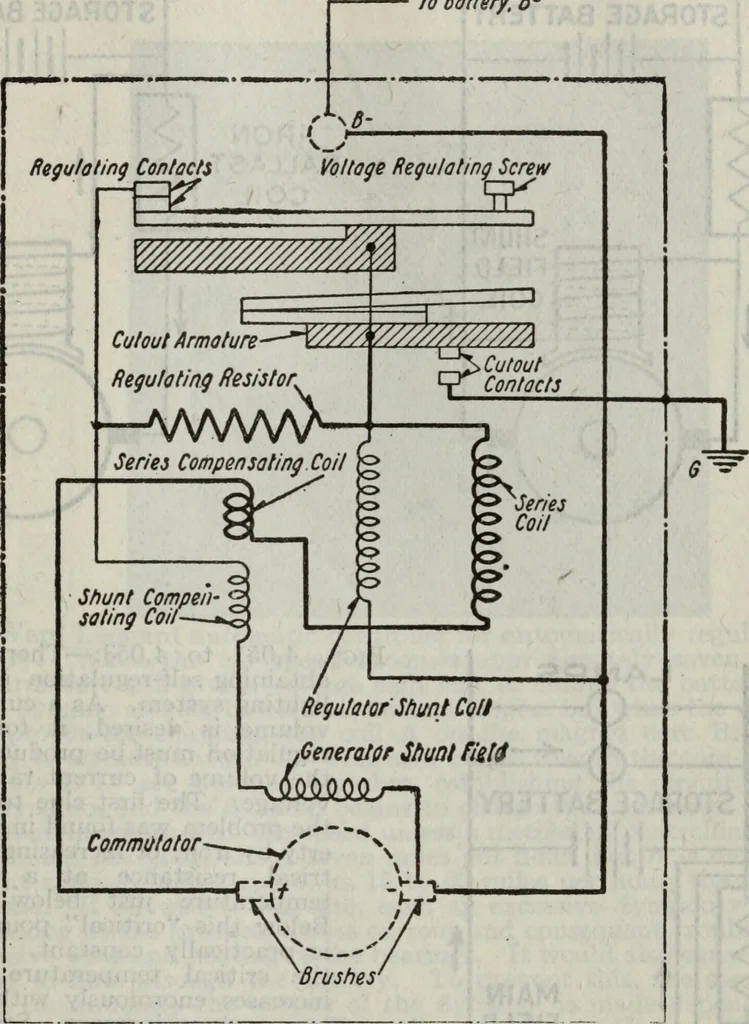

namo is again cut out and has noconnection with the storage battery. The motor generally is mounted so as to drive throughteeth cut on the periphery on the flywheel, or it may be mounted on the one end of the engineor the gear set. A roller clutch is used which cuts out the motor as soon as the… … 4,050.—Diagram of connections of Westinghouse dynamo with self-contained regulator.The regulator performs two functions: 1, that of a cut out, and 2, that of a voltage regulator.Each function is performed by its individual element but the operation of the secondfunction depends upon that of the…
