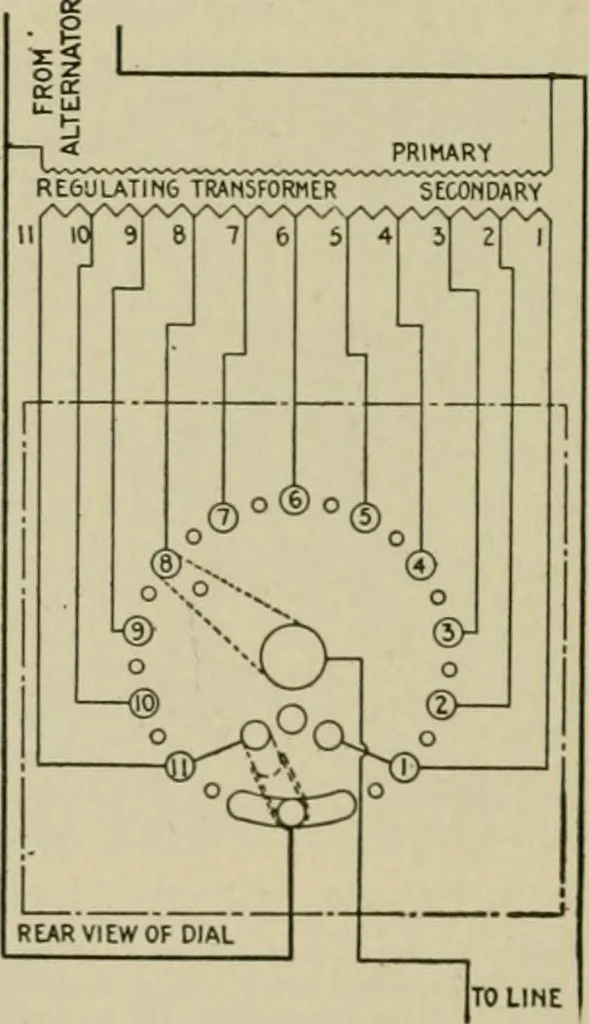

avy current circuits. 1,738 HAWKINS ELECTRICITY Ques. Describe the connections. Ans. The primary of the shunt transformer is connectedacross the line and the secondary has a number of taps whichare connected to contacts on the dial. The primary of the seriestransformer is connected in series with… … Fig. 2,437.—Diagram of connections for Westinghouse dial type variable ratio voltage trans-former. In construction the secondary winding of the transformer is divided into 10,14, or 20 parts giving 11, 15, or 21 taps which are brought ojt from the secondary wind-ing and connected to the various…
