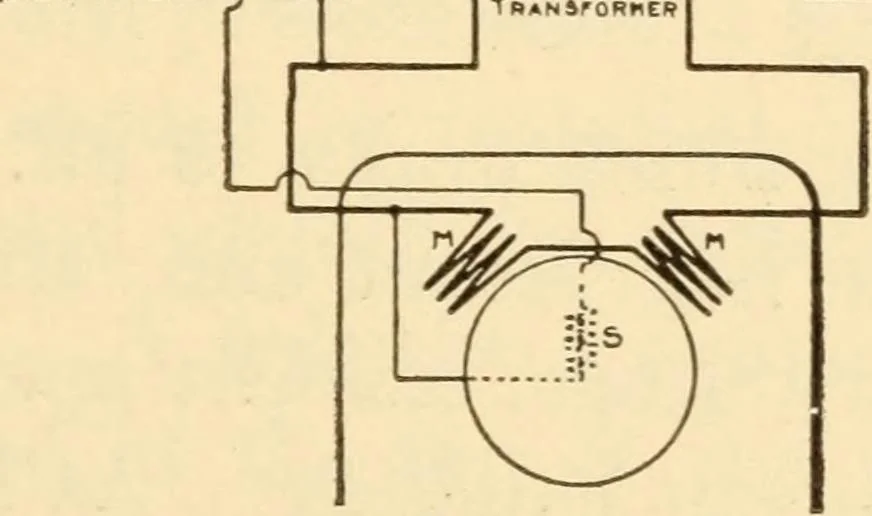

Mem Figure 189 mains through the meter. A small current trans-former is connected in series with one of the mains,the secondary of the transformer being connected to ^_^/WWM_^ m … Figure 190 the meter as shown in Figures 189 and 190. If the me-ter is used on a primary circuit or on any circuit wherethe voltage is high a small potential transformer maybe connected across the mains and the shunt field con 320 Operating ana Testing nected directly to the secondary as shown in…
