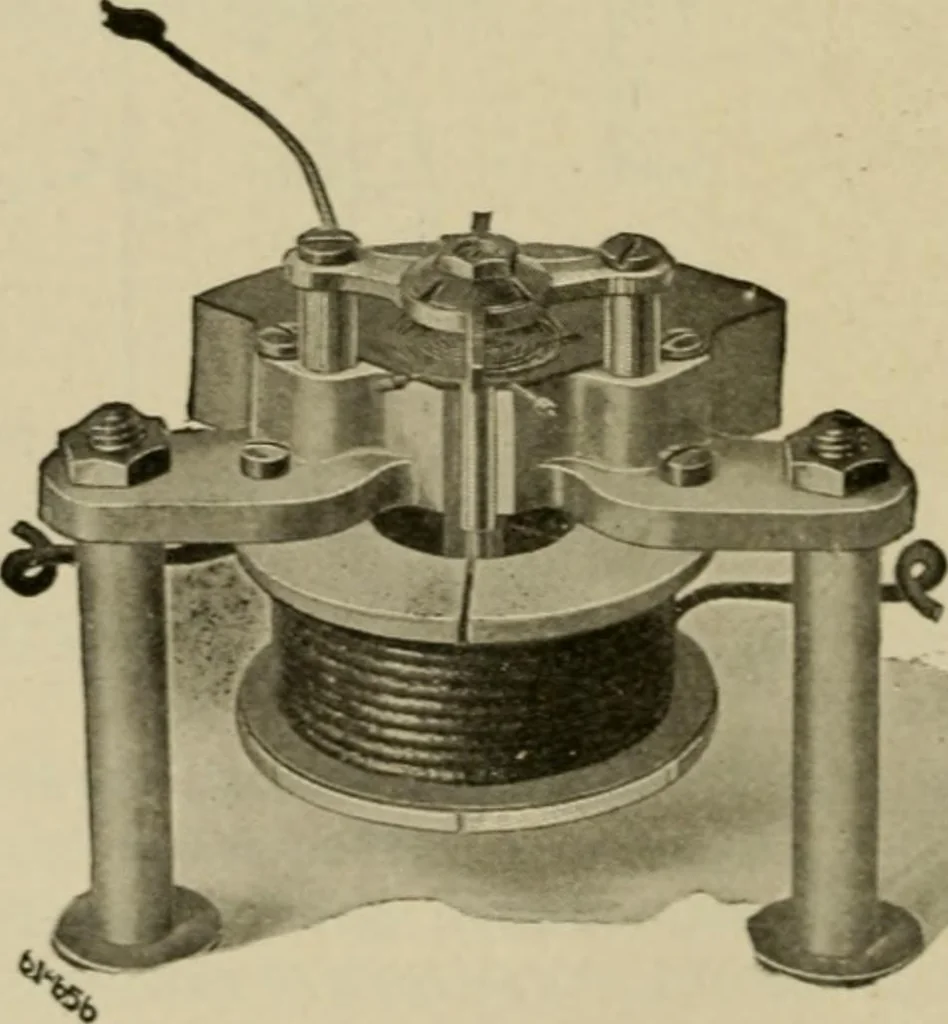

PIVOTFig. 2.4&9.—Magnetic vane form of electromagnetic or moving iron instrument. … FlG. 2,.t00.—Magnetic vane movement of a Wagner instrument; it is used both for voltmetersand ammeters. This type differs from the dynamometer movement in that a vane t:soft iron replaces the moving coil. The magnetic vane movement makes use of its con-trolling spring only for the purpose of…
