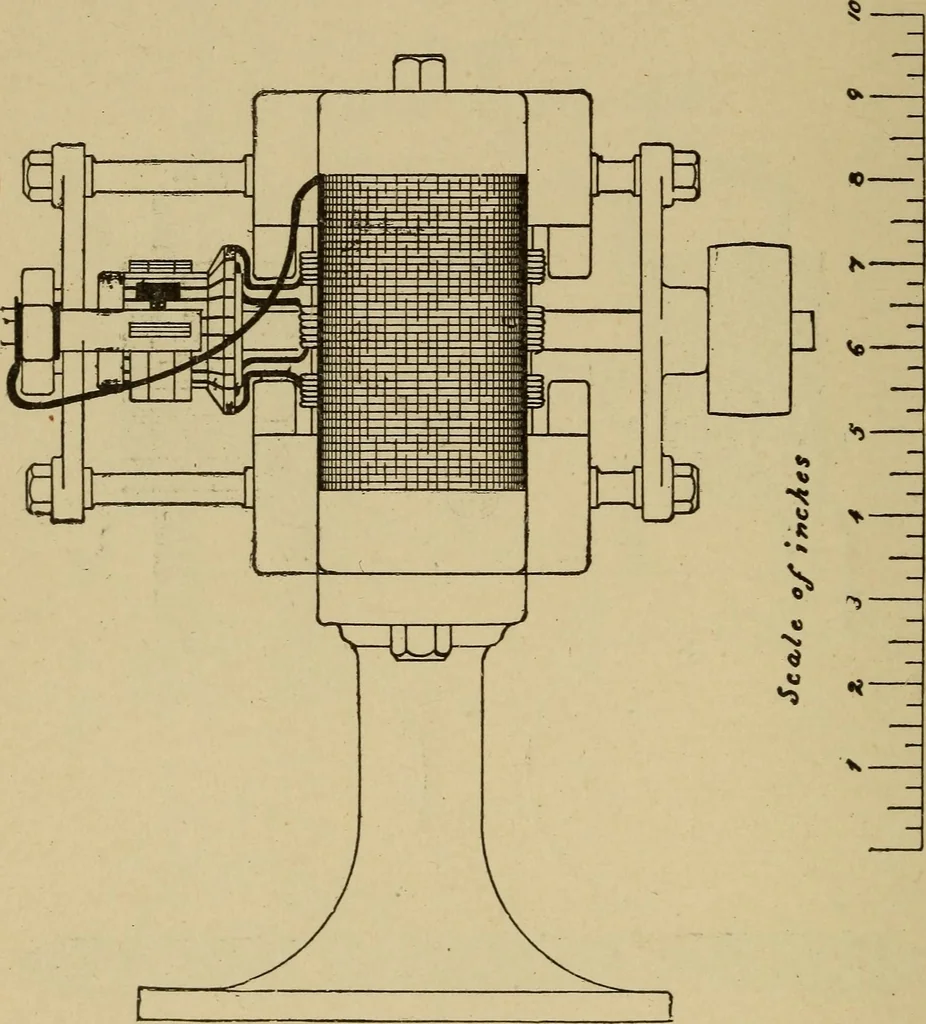

to prevent the wire forcing them off. The wind-ing for the field magnets consists of No. 12 doublecotton covered wire, 36 turns and 6 layers, making432 turns on both magnets. This machine is cal- 144 ELECTRICITY AND ITS culated to develop one-half horse-power at 1500revolutions. The connections… … Figure 15—End view of motor. which show all connections very clearly, a numberof the commutator connections being left off onone side to avoid confusion and to show clearly the RECENT APPLICATIONS. H5 method of connecting. The brush holders can bescaled off from these two drawings which is sosimple…
