Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 281

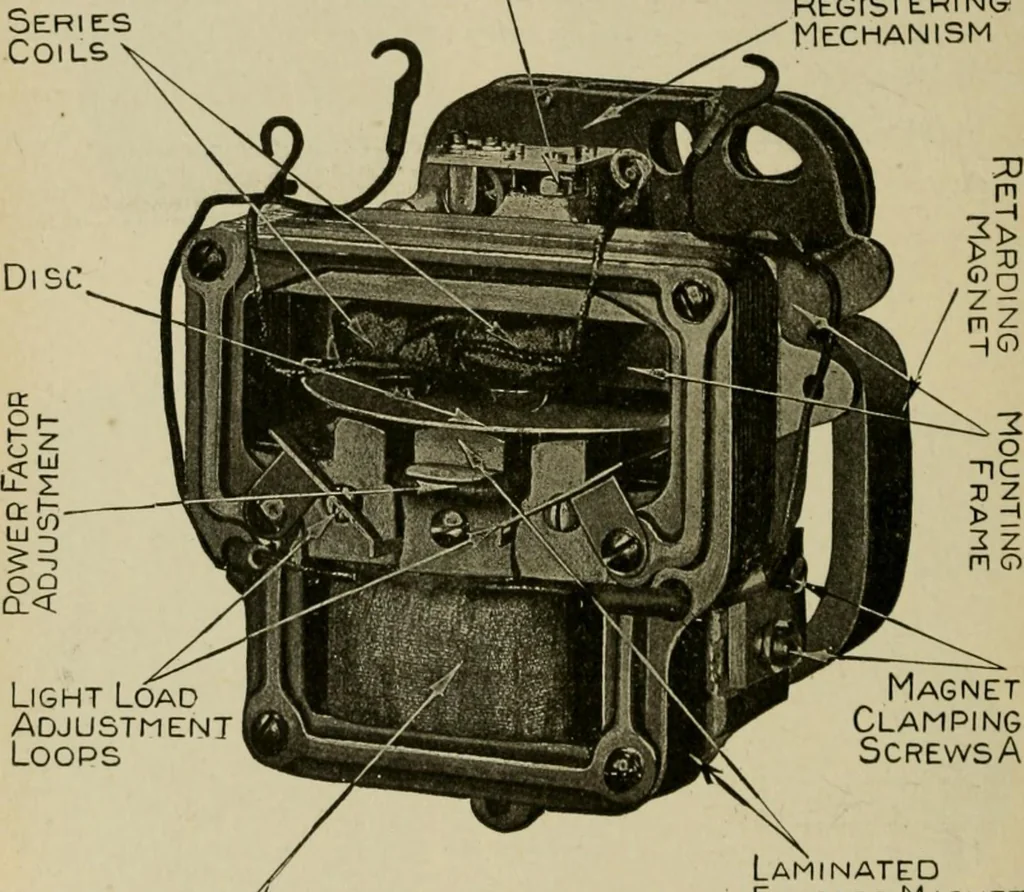

ter. The movable coil is wound to gauge with silk covered wire andtreated with cement. While winding, the coil is spread at diametrical points to allow theinsertion of the staff, which is centered by means of two curved plates cemented to theinside surface of the coil and forming a part thereof.… … °5 Light Load Adjustment Loops ShuntCoil MagnetClampingScrewsA LaminatedElectro MagnetCore Fig. 2,528.—Westinghouse single phase Induction type watt hour meter removed from case.The friction compensation, or light load adjustment, is accomplished by slightlyunbalancing the two legs of the shunt…
Electrical engineering
