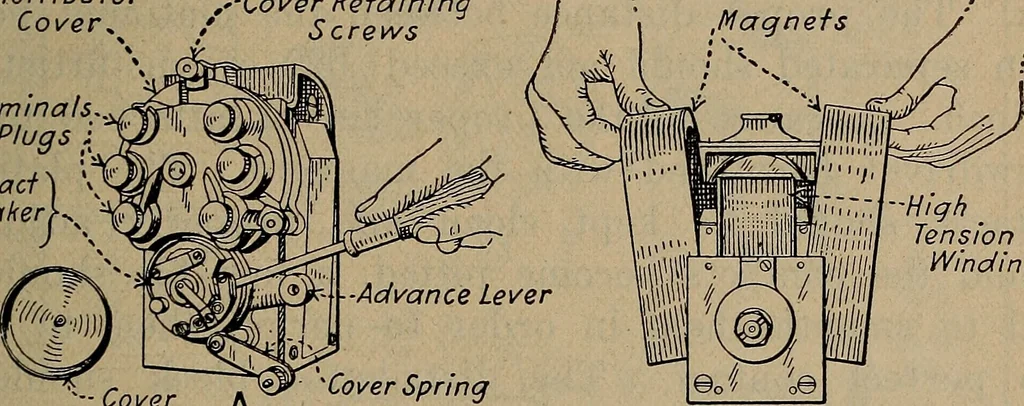

gneto. The high-tension cur-rent is carried to the distributor by means of an insulatedblock with a spindle, at one end of which is a springbrush bearing directly on the winding, thus shortening Dixie Ignition Magneto 187 the path of the high-tension current and eliminating theuse of rubber spools… … Contact \Breaker}--.Box J - Cover AThe whole breaker mechanism is exposed bysimply turning the cover spring aside andremoving cover. A screw driver is the onlytool necessary to adjust the platinum points, DistributorDrive Gear High _TensionWinding After removing the cover themagnets can be taken…
