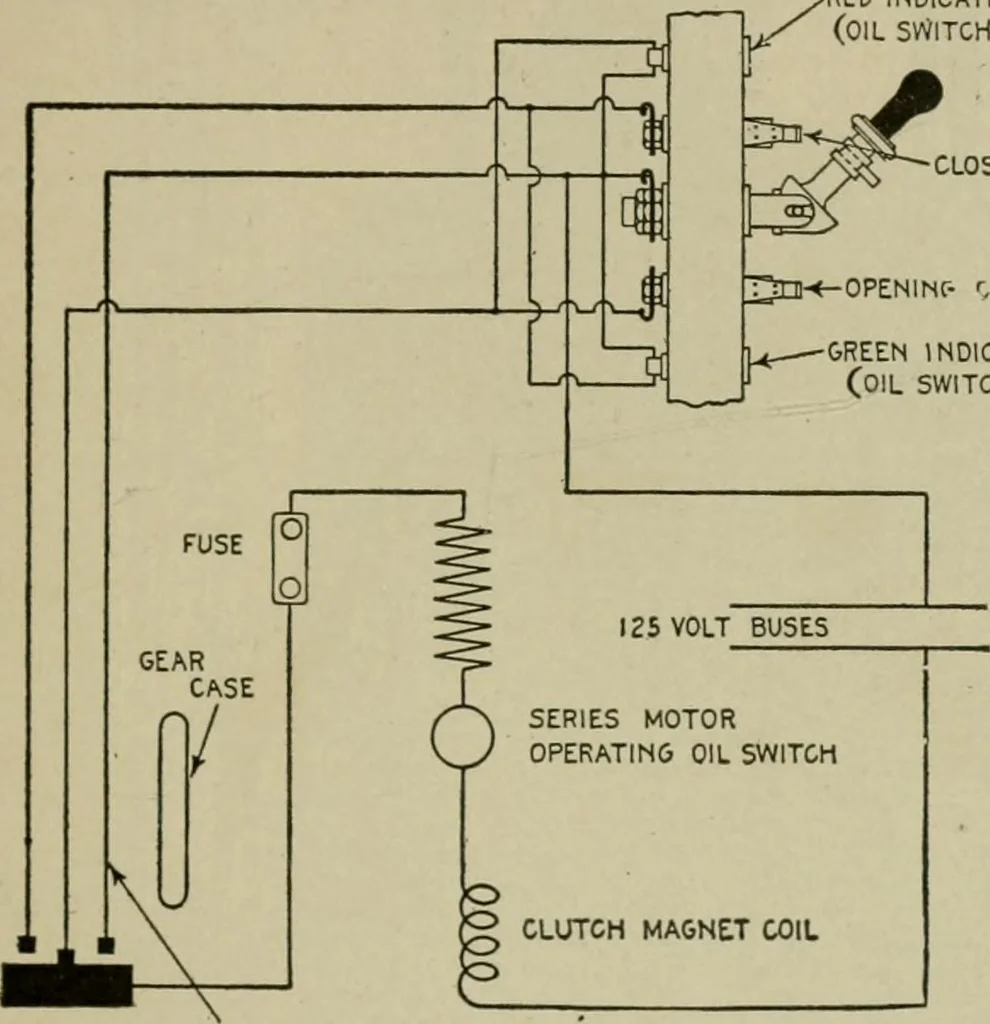

osed by the action of a plunger solenoid,and opened either by another solenoid called a tripping coil or bygravity. Some examples of remote control are shown in the accom-panying illustrations. SWITCHING DEVICES 1,607 Ques. What indicating devices are used with elec-trically operated switches ?… … AUTOMATIC COHTACT FINGERSCAM ACTUATED OIL SWITCH IN CL0SE.O POSITIONPlG. 2,231.—Diagram of connections of motor operated remote control switch. The motorwhich operates the switch is controlled by a small lever generally mounted on the panelwith the instruments which are in the circuit controlled by…
