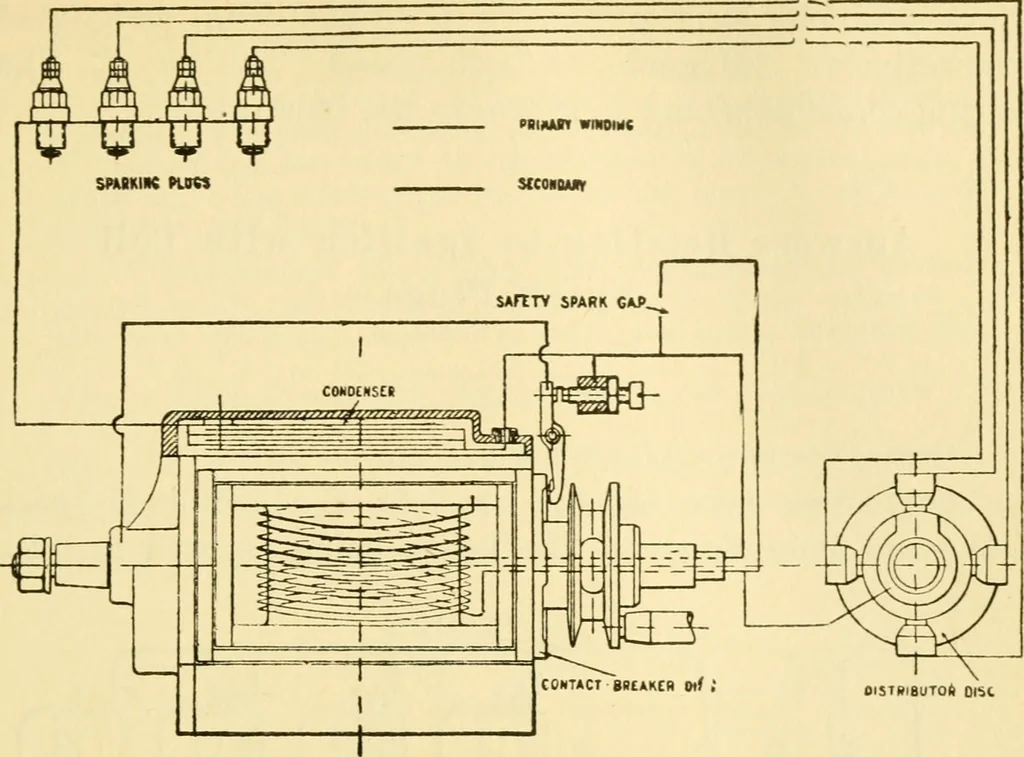

lead wire; J, carbon brush of distributerdisc; K, insulated ring; L, rotating drum of distributer; M and N, distributerbrushes; O and P, safety spark gap; Q, swiveled lever for retarding or advanc-ing the spark time; R, condenser; T, T, spring pushed wick oilers for arma-ture spindle. the magneto… … OlSTRlBUTOft D{St Fig. 111.—Circuit diagram showing the v^immi-Bosch high tension magnetowired up to spark a four cylinder engine. The secondary current is led fromthe armature winding by a wire, encased in a tube, which emerges fromthe spindle of the armature. Thence, through a carbon brush…
