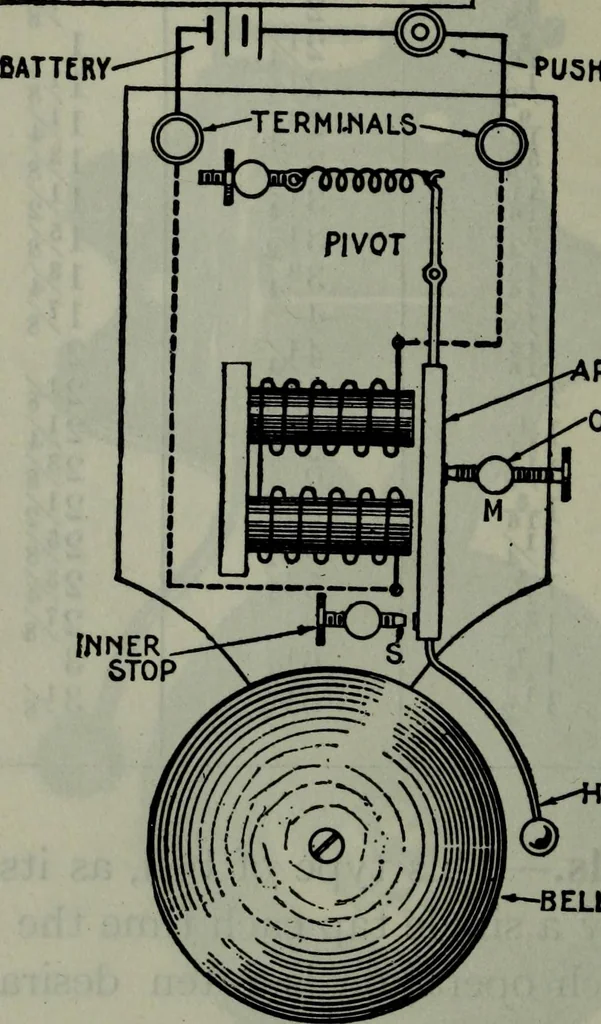

terrupter, there being two limiting stops. Ques. Explain the operation of the single stroke bell. Ans. When the terminals are connected with the battery, 2,344 HAWKINS ELECTRICITY the current energizes the magnet and attracts the armaturecausing the hammer to strike the bell. The armature remains… … RMATUREOUTER STOP AMMER —-BELL Fig. 3,203.—Elementary series single stroke bell. It is identical with the vibrating bell asshown in fig. 3,201, excepting that the magnet winding is connected direct to the ter-minals, and that there is no interrupter. The latter is not needed because the circuitis…
