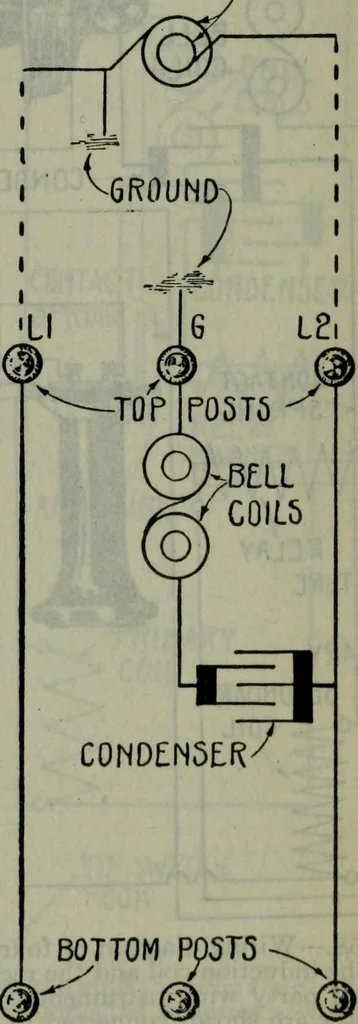

Fig. 2,956.—Wiring diagram of two party line R bell station with G post represented asconnected to ground and negative side of alternating current generator also grounded.When bell is rung, ringing key throws positive current in instrument at L2, across condenserand through bell and out at G to…
