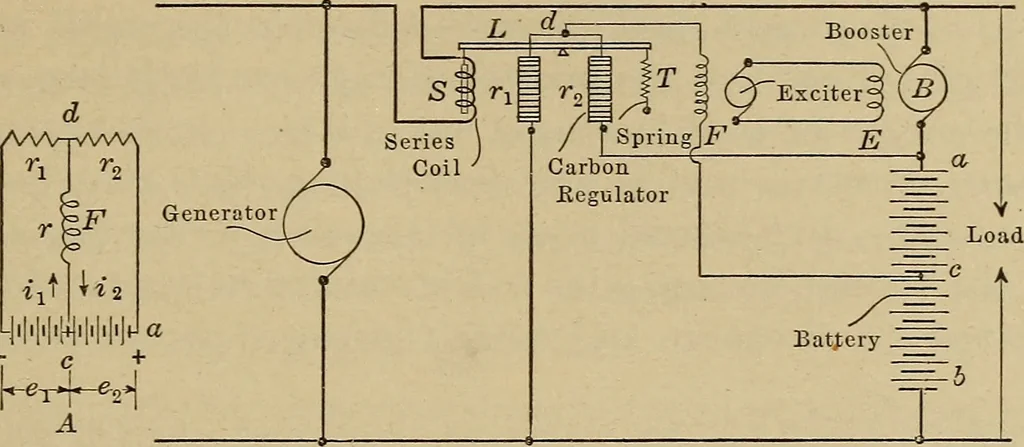

tteryvoltage, and thereby helps the generator to charge the battery. 208. Carbon Pile Regulator.—The diagram of connections fora booster system controlled by a carbon pile regulator is shown inFig. 195. The booster B is excited by the coil E which takes Art. 208] OPERATION OF GENERATORS AND… … Fig. 195.—Carbon pile regulator for the automatic control of a battery. one end of which is attached the plunger of the operating so-lenoid S and to the other end a spring T, the tension of which maybe adjusted to counterbalance the pull of the solenoid when any
