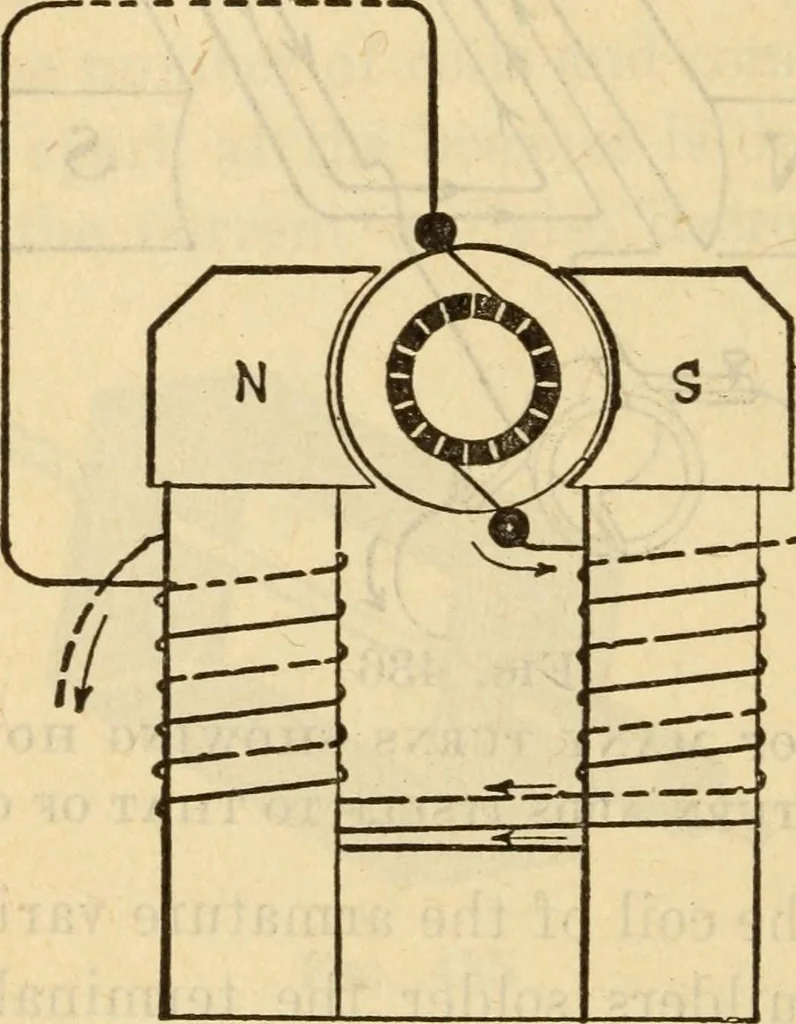

ends of the coil become commutator bars, making the coilcontinuous from one end of the commutator bar to the endof the diametrically opposite commutator bar. To increase the electro-motive force. The greater the 1044 Steam Engineering field strength, and the higher the speed the greater… … \ Fig. 4aS SEPARATELY AND SELF-EXCITED SERIES DYNAMO. In order to further increase the electro-motive forcemore turns or loops of wire must be wound on the arma-ture. A coil of 16 turns as in Fig. 435 will give an electro-motive force 16 times as great as a coil like Fig. 426. Eef-erence to Fig.…
