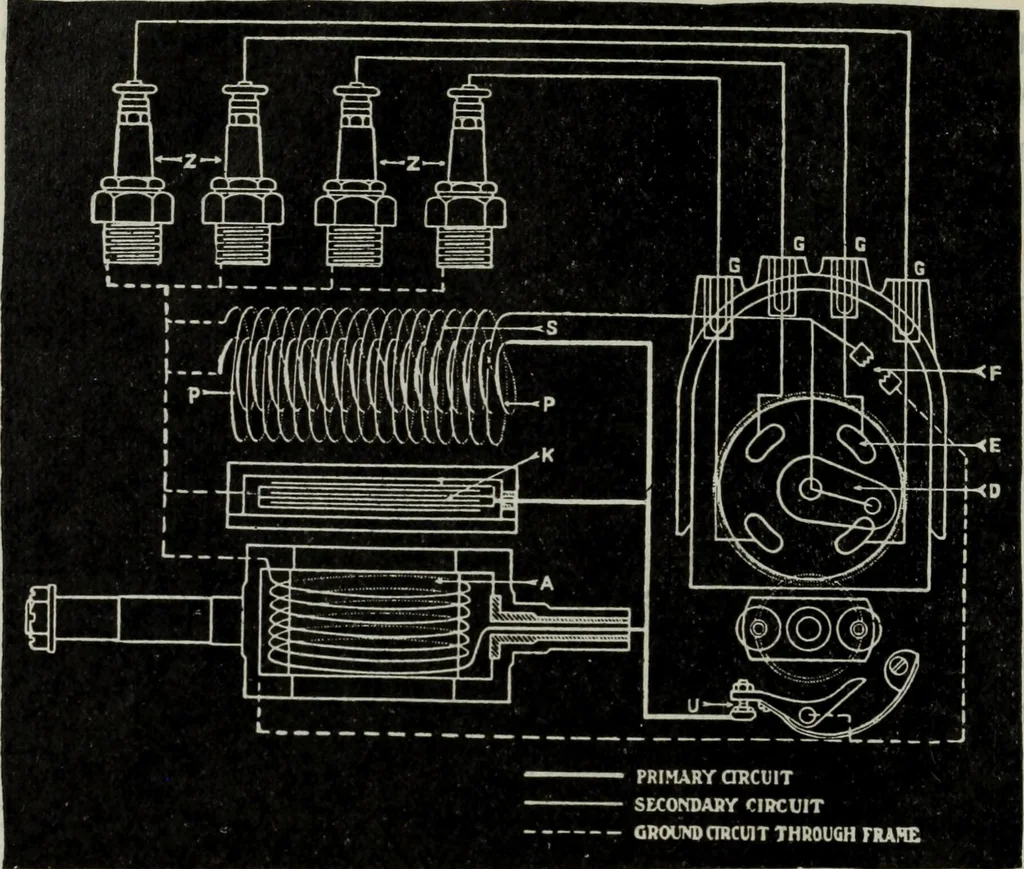

t one end of the arma-ture shaft, from which the current flows to an insulated terminal bymeans of a metal contact which is pressed against the revolving rodby a spring. High Tension Magnetos.—These are erroneously dividedinto three classes, viz: 1, those in which the induction secondarywiring is… … Fig. 3,959.—Circuit diagram of a magneto with self contained coil. A is the armature winding;P, primary of transformer; S, secondary of transformer; D, distributing brush carrier;E, contact segments; F, safety spark gap; G, terminals to plugs; U, interrupter; Z,spark plugs, in operation,…
