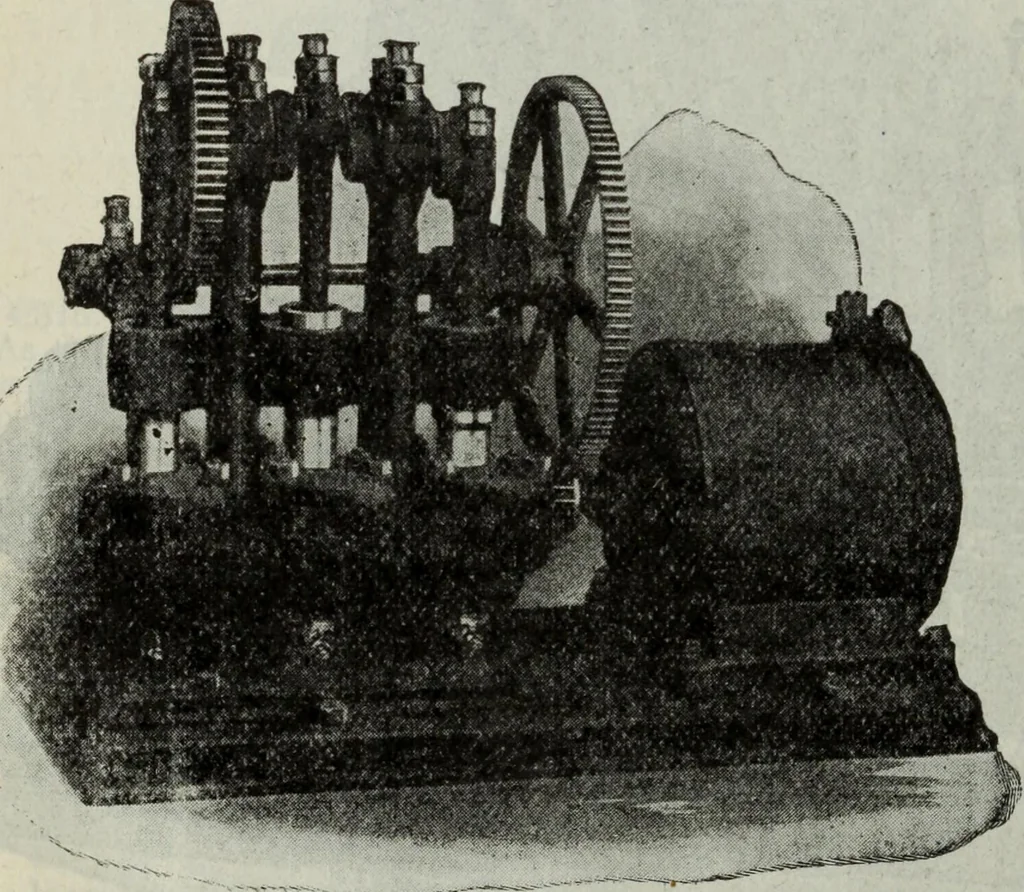

Fig. 4,319.—Deming single acting plunger triplex pump with single reduction, so calledsilent chain drive. This drive is desirable where quiet running is essential and spacelimited. It gives a positive connection between motor and pump, but when worn, theoperation of the chain becomes jerky,… … Fig. 4,320.—Deming singleacting plunger triplexpump with doublereduction spur geardrive. As shown, thepinion gear on themotor engages with alarge gear on the inter-mediate shaft whichhas at its other end asmall gear or pinionwhich engages with alarge gear on the pumpshaft. As is evident, alarge…
