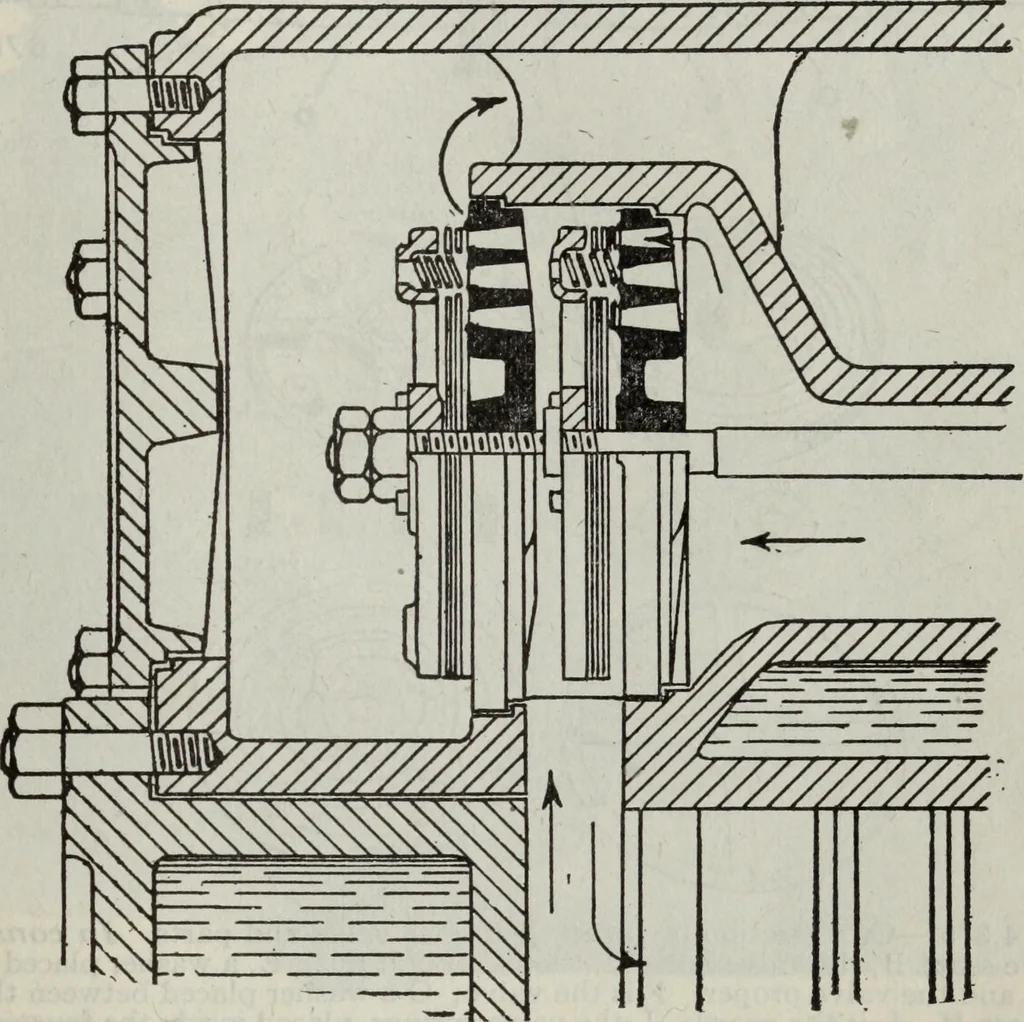

thus completing the cycle. The valve is double ported, airentering the cylinder outside the ring valve and inside of it through the openings in theguide plate. AIR COMPRESSORS 3,031 Ques. What are the features of the dry or jacketedcompressor process? Ans. In this system the external walls of the… … Fig. 4,363.—Sectional view showing method of placing Ingersoll-Rogler inletvalves in the cylinder of duplex compressors. .nd discharge Compound Compression.—The efficiency due to the heatof compression decreases as the terminal pressure increases,and for pressures above 60 lbs., the water jacket of…
