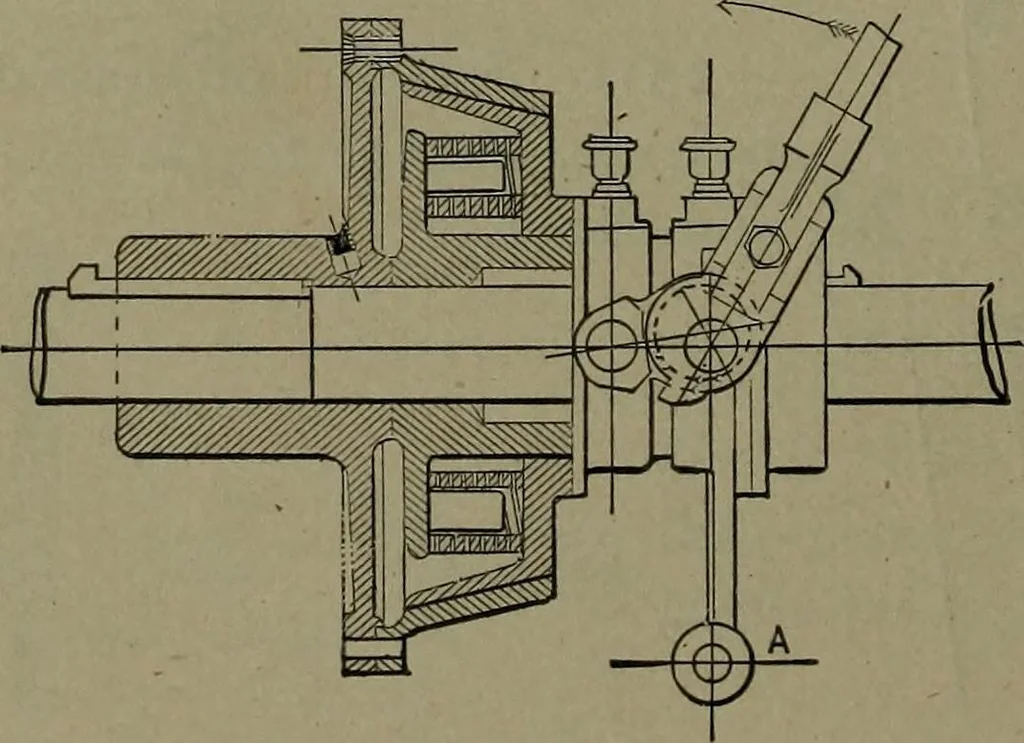

. 1312. PIN CLUTCH.—The pin plate isfast on the shaft. The hole plate slides on afeather, and is operated by a bell-crank Y-leverin a hub slot. 1313. FRICTION PIN CLUTCH.— A or B may be the driving shaft; ^ is afriction band that slips to prevent shockwhen the pins are thrown into contactwith it.…
