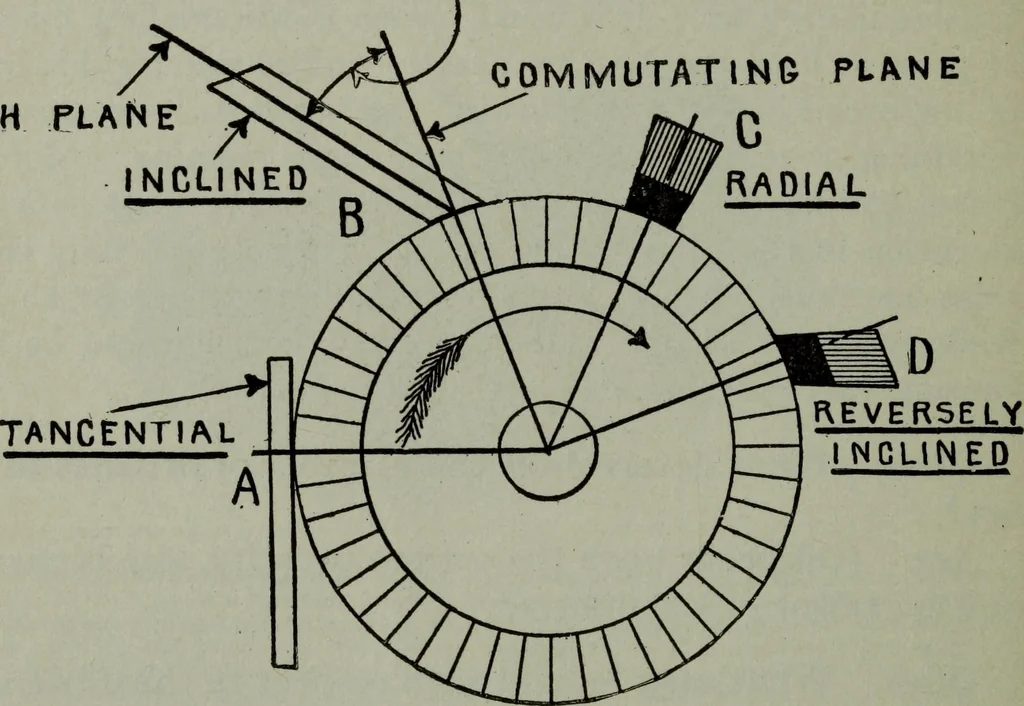

ush contact face? Ans. It may be taken as one and one-half times the thicknessof the commutator segments. 312 HAWKINS ELECTRICITY Ques. How wide should a carbon brush contact be? Ans. The brush should be thick enough to cover two andone-half commutator segments. The thickness should in nocase be… … Fig. 339.—Contact angle for the different types of brush. At A is shown a brush withtangential contact, and at B, a so called tangent brush; the latter is properly called aninclined brush. Sheet copper brushes are set tangentially as at A, and gauze brushesinclined as at B. Carbon brushes are…
