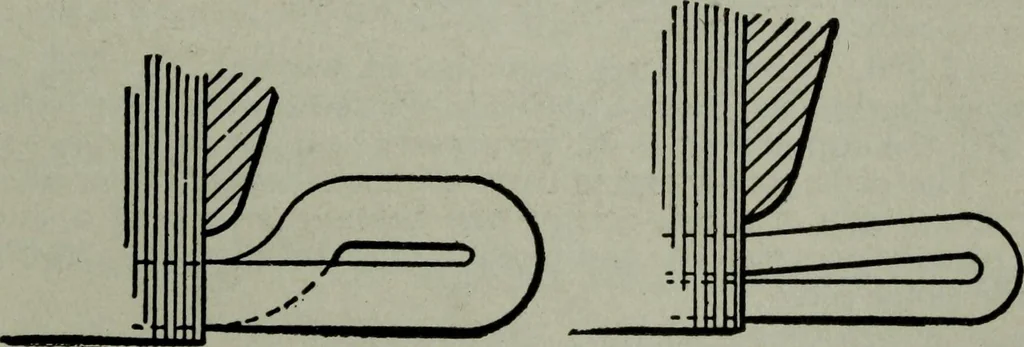

uctor in the form of a bar is connectedto the next by means of two evolute spiral copper strips, one bending inwardly, the otheroutwardly, their junction being in some cases secured to a block of wood upon the shaft.Their outer ends are attached to the bars by rivets or silver solder. Barrel… … Figs. 375 and 376.—Single layer and double layer barrel winding. Barrel winding is a methodof arranging the ends of armature coils as they pass from one pole to the next, in which,instead of using involute or butterfly connections, V-shaped end connections are used whichlie on a cylindrical…
