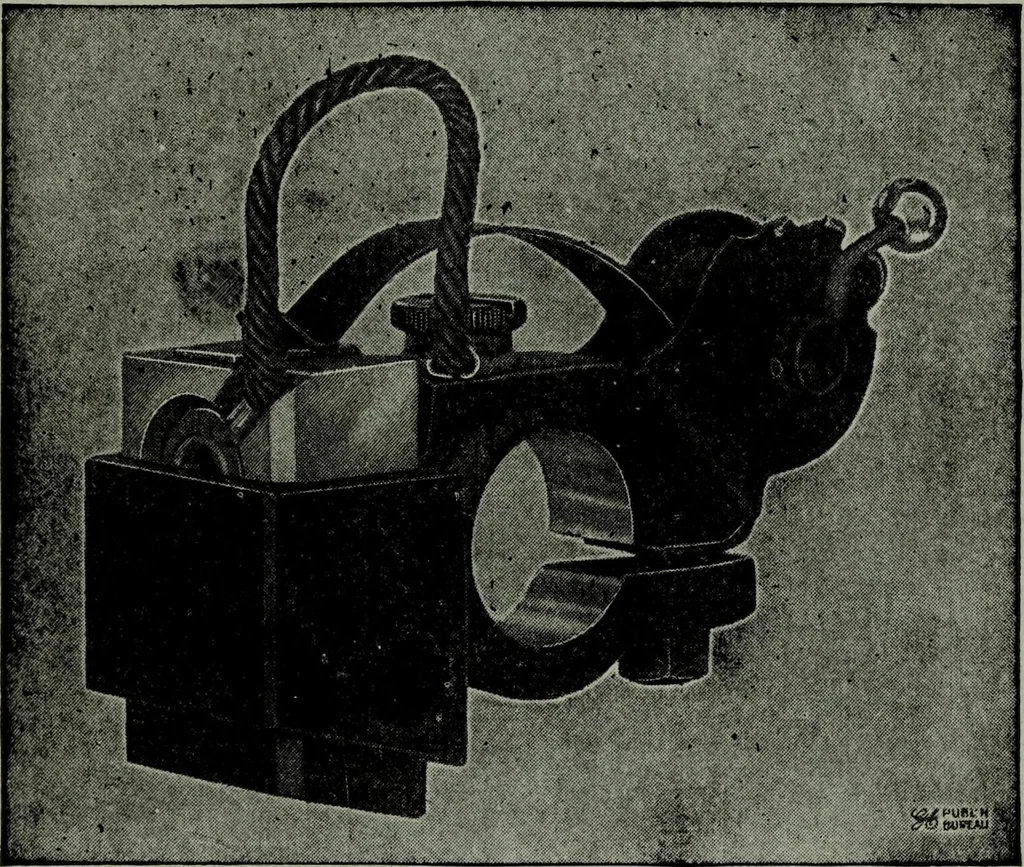

copper wires, laid side by side and solderedtogether at one end. Since wire brushes are harder than thegauze brush, they are more liable to cut or score the commuta-tor, and are also more troublesome to trim. BRUSHES AND THE BRUSH GEAR 305 Laminated or Strip Brushes.—These probably representthe… … Fig. 333.—General Electric brush holder. The brush holder yoke consists of a cast iron ringof elliptical section, supported from the bracket of the end shield in such a manner as tofacilitate the shifting of the brushes. It is provided with a suitable handle, and may befastened in any position by…
