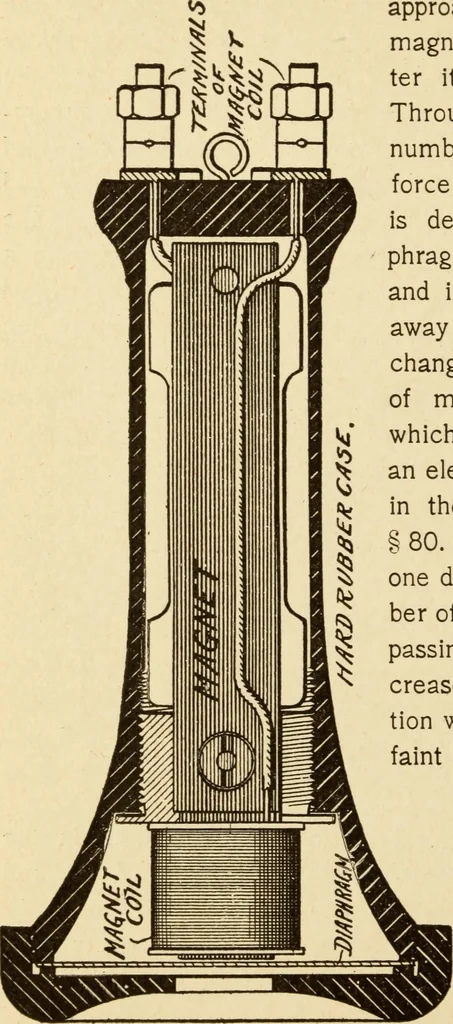

Fig. 113. The working of this telephone may be explained in thefollowing way: Many magnetic lines of force of the rodmagnet m, pass the coil, and some of them enter the diaph-ragm d, pass through it and return toward the opposite pole.When the speakers voice causes the diaphragm to vibrate,however… … Fig. 114. approaches the pole of themagnet, while less lines en-ter it when it moves away.Through this operation, thenumber of magnetic lines offorce passing through the coilis decreased when the dia-phragm approaches the poleand increased when it movesaway from it. When thesechanges occur in the…
