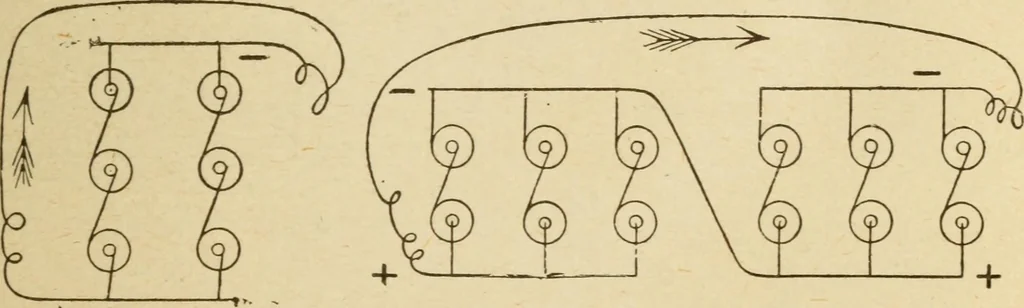

D), then the E. M. F. of one groupE = 1 -5 volts, and 1 = 3X4 = 12 amperes, and the E of thewhole battery, E =2X1-5=3 volts and 1 = 12 amperes. EXAMPLE 4. 6 cells are joined in parallel; E. M. F. of each cell 1-5volts, internal resistance 2 ohms, external -5. What is thestrength of the current ? It… … Fig. 16. Fig. 17. Fig. 16 represents the cells connected in series multiple.Fig. 17 represents cells connected in series multiple in series.Any such combination (of both series and parallel) as in fig.15 C, D, and figs. 16 and 17 is said to be connected in seriesmultiple. By the arrangement of fig.…
