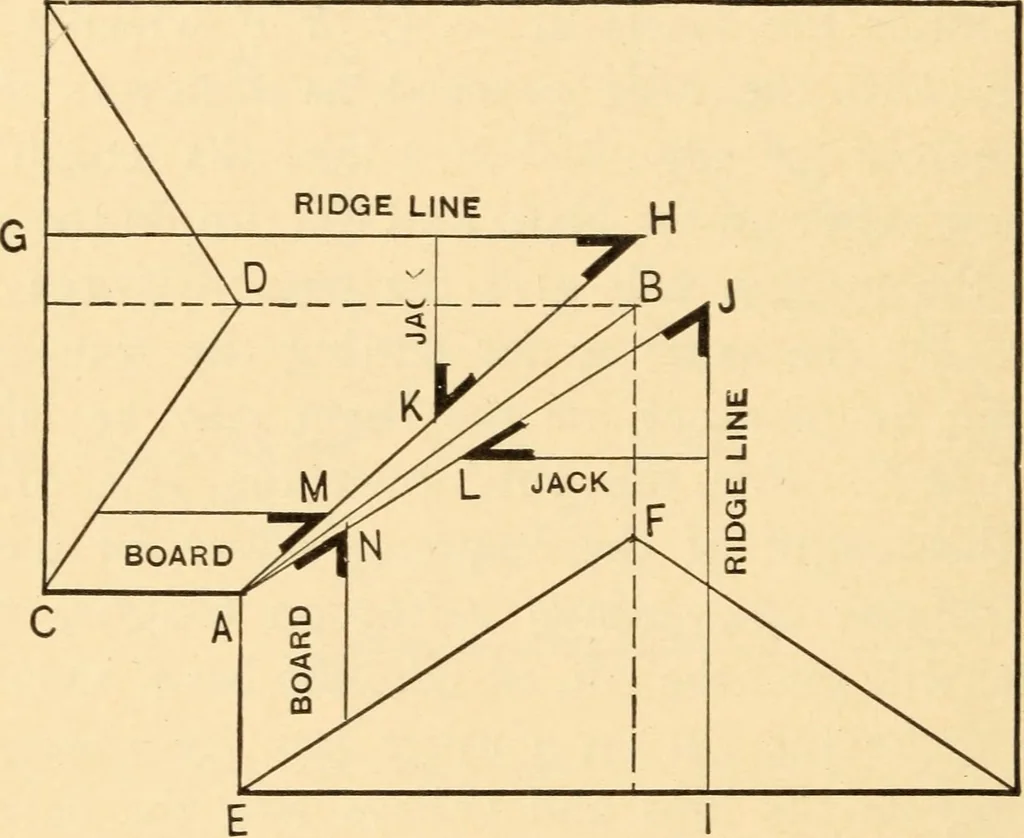

n bladeand run of common rafter, 12 inches, on tongue givescut for face of planceer or sheeting. The tongue givesthe cut. 158 THE BUILDERS GUIDE. Length of common rafter, 14^ inches, on bladeand rise of common rafter, 8 inches, on tongue givescut for edge of planceer or sheeting. The tonguegives… … Fig. 113.—Plan of Valley in a Roof of Two Pitches. and rise of common rafter, 8 inches, on tongue givescut for side of fascia. The tongue gives the cut. METERING ROOF BOARDS AND PLANCEERS. To miter planceers and roof boards in valleys oftwo pitches it is only necessary to take the figureson the…
