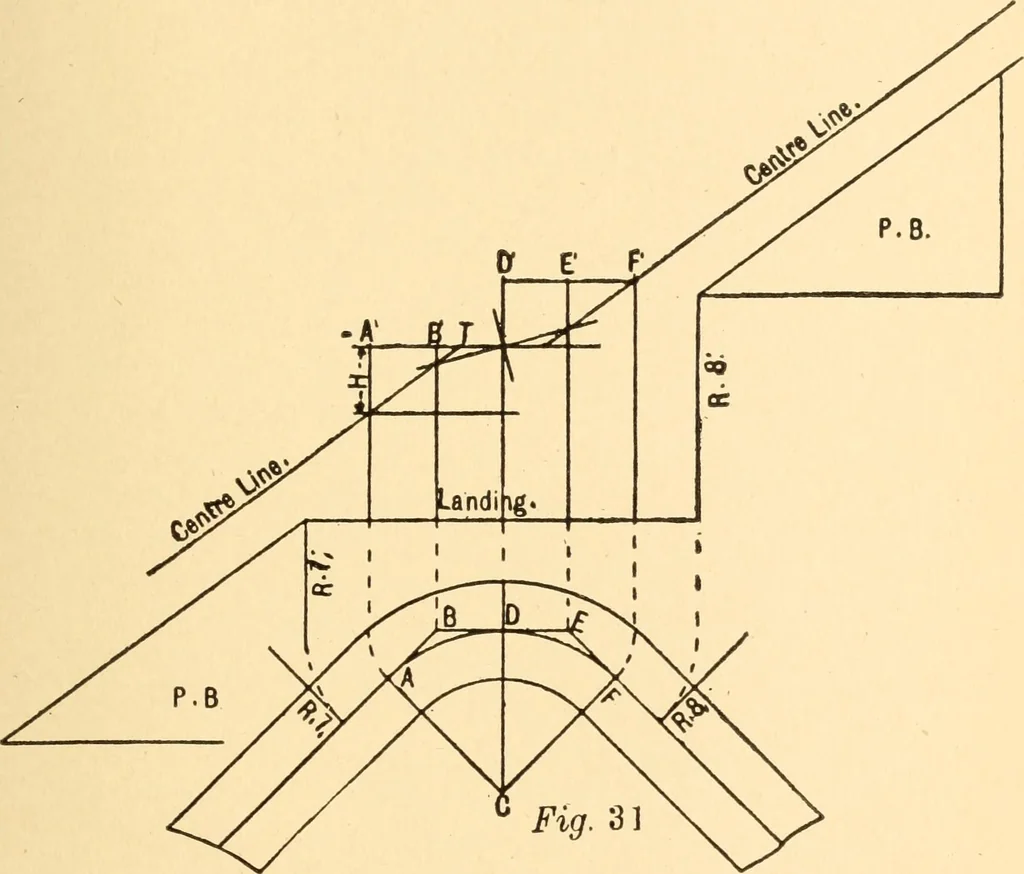

wnacross the under side of the wreath and the lengths 1 \ i L V ^^ ^ E r 1 X t^--^^ i^j. A:^ K. / ^ \^y^ 1 X \^ hi La nding. Fig. 30. w cL P B. V 1 1 III are taken from them. For the extra thickness required for this wreath the distance ST, Fig. 27, would be quite sufficient over what is usually… … Fig. 31 is the development for the wreath to be intwo pieces. Redraw the plan same as Fig. i; drawthe joint line CD, and draw BE tangent to the centerline and at right angles to CD. Produce the centerlines past A and F to meet B and E. With B and E ascenters turn the springing lines around, and…
