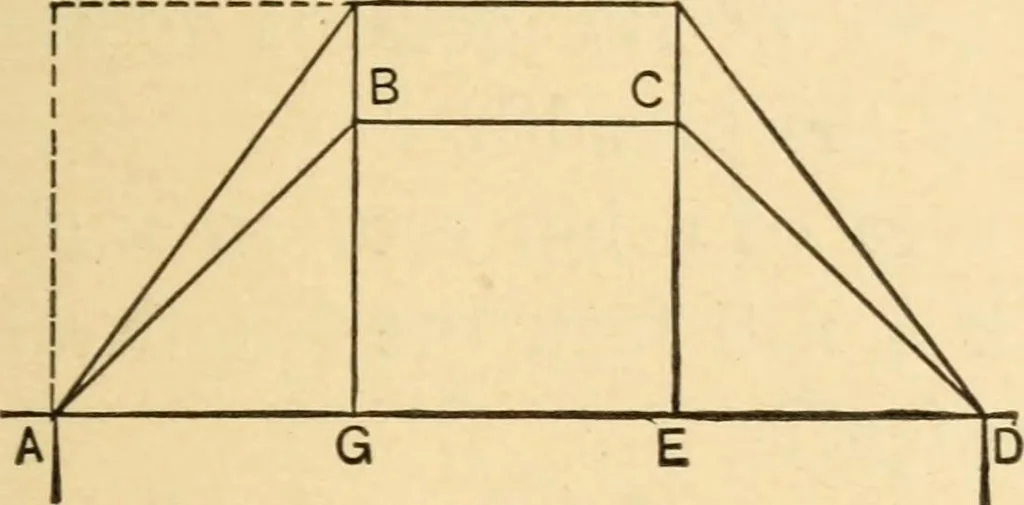

ing the lengths ofthe hips, showing thetrue size of the roof,and how to reduce thefigure to a rectangle ofequal area. Referringto Fig. 23, A B C D andE represent the samelines as shown in Fig.22. Now, take the length of the common rafters A Band C D in Fig. 23 and draw them perpendicularly,as shown… … Fig. 23.—Size and Shape Necessaryto Cover Roof.
