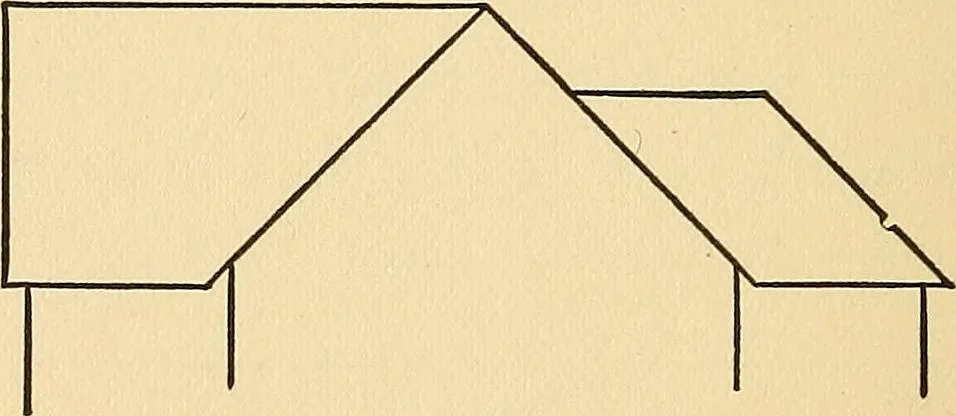

Fig. 28.- -Diagram for Finding Area of Roof Shown in PreviousFigure. line J H. Connect H with A and C for the valleyrafters, which completes the profile of this side of theroof. The two figures, now represented by A D E Hand C F G H, are termed trapezoids. To find the areaof a trapezoid multiply… … Fig. 29.—Appearance of Roof in Right End Elevation. sides by the altitude. In this case to make the matterplain we multiply half the length at the eaves andridge by the length of the common rafter, which givesthe area of the roof necessary to cover the elevationshown in Fig. 27. Fig. 29 shows the…
