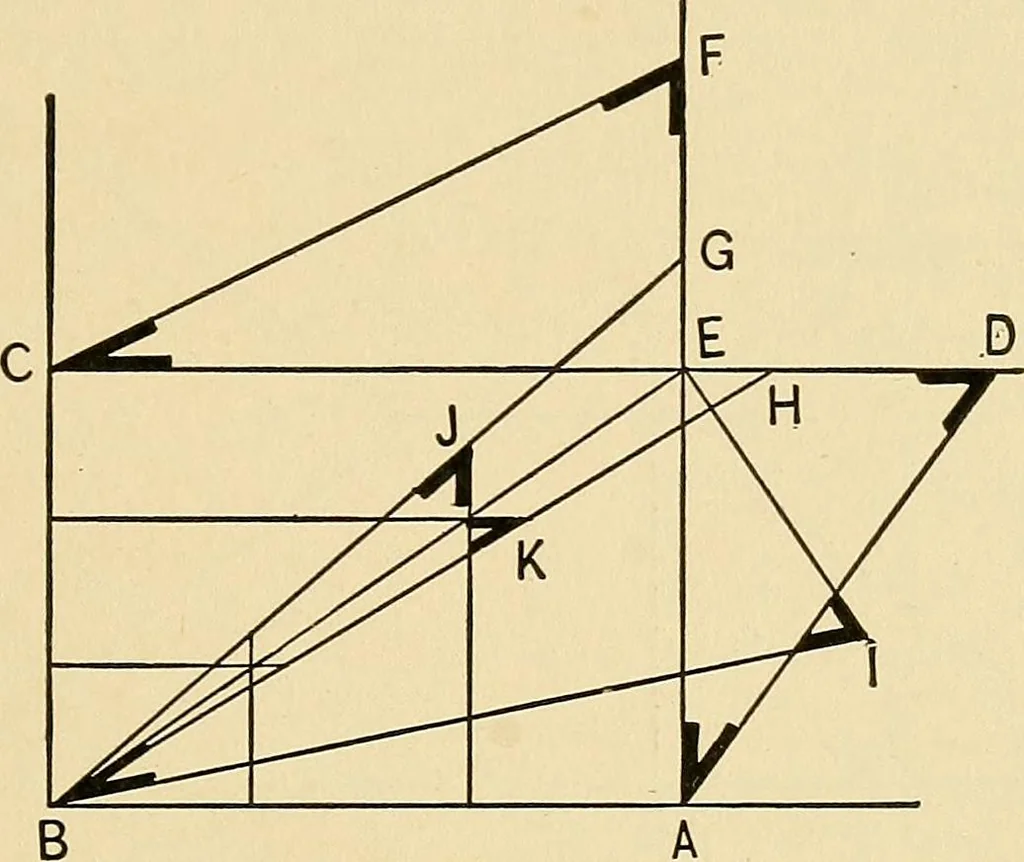

hip line B H, which willgive the length of jacks on the long side of the hip. THE BUILDERS GUIDE. 97 The bevel at K is the bevel across the back. Theplumb cut or down bevel is the same as that of thecommon rafter shown at F. BE is the angle and runof the hip, E I the rise and B I the length of the… … Fig. 64.—Another Method of Obtaining Lengths and Cuts ofRafters in Hip Roofs of Unequal Pitches. bevels of the jacks and the hip, and are practicallythe same as shown in Fig. 62. Of the twO plans Fig.64 is perhaps plainer and more easily understood, yetboth have the common difficulty, a confusion…
