The internal combustion engine; a text-book for the use of students and engineers (1915)
Wimperis, Harry Egerton, 1876- · New York, D. Van Nostrand company · leaf 188

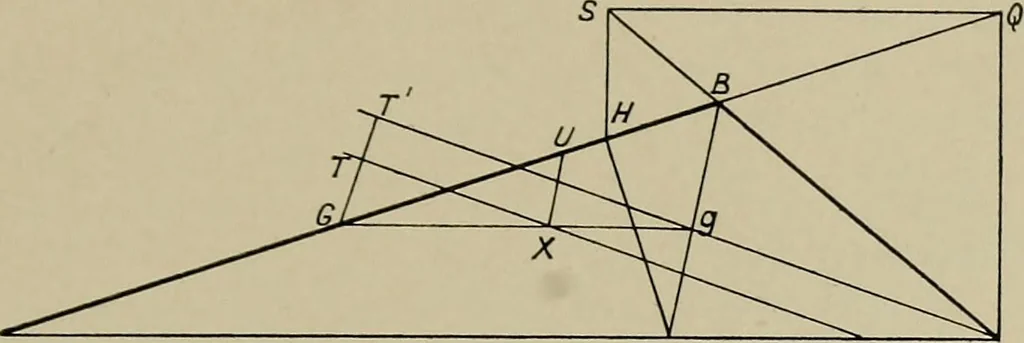

of this construction is given in Perrys Steam Engine,and may there be referred to by those interested. This diagram enables the direction and amount of the inertia CHAP. V | THE GAS ENGINE 165 forces due to the connecting rod to be calculated for eachposition of the crank. If k2 happens to be equal… … A a N 0 Fig. 55.—Resultant of all the Accelerating Forces on a Connecting Rod.
Internal combustion engines
