High frequency apparatus, design, construction and practical application; a practical treatise for electrical engineers, electricans, physicians, students and experimenters (1920)
Curtis, Thomas Stanley · New York, Norman W. Henley publishing company · leaf 231

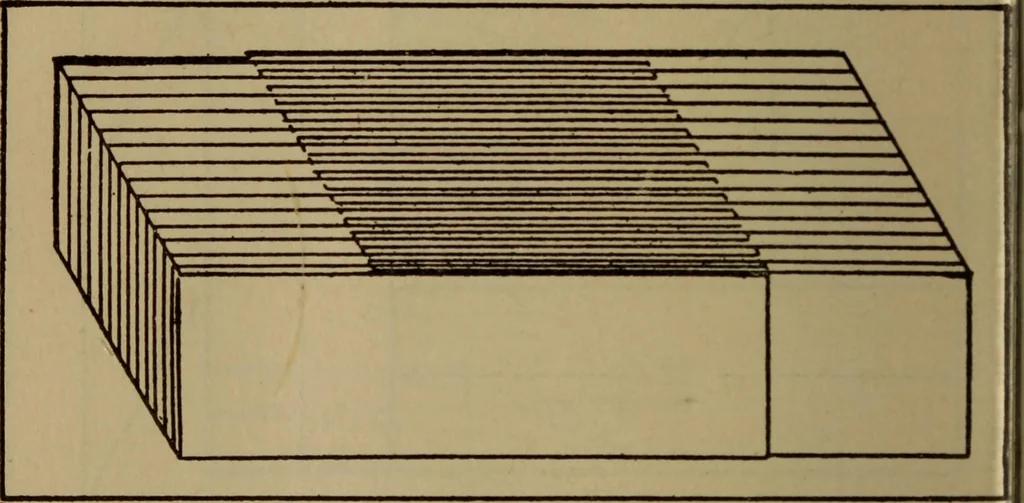

e purchased from some transformer manu-facturer already cut to size, as it is practically impossibleto buy silicon steel in such a small quantity in the openmarket. Assuming that the steel has been obtained, thelegs A and E of the core may be assembled by placing thepieces alternately first to the… … Fig. 125.—Short leg of core on which winding is placed vise and bound with friction tape. The pieces forming theleg B may then be inserted one at a time to form the con-necting yoke. This is rather a tedious process, but it offersthe only practicable method of making a joint that is…
