High school manual training course in woodwork, including cost of equipment and supplies and studies on trees and wood (1905)
Ritchey, Samuel Edward, 1866- · New York, American Book Company · leaf 192

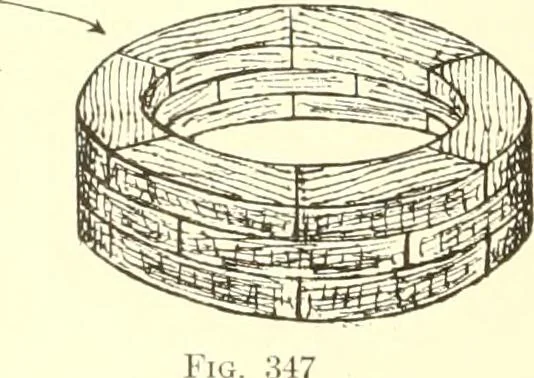

Fig. 346 Segments are laid out on a board, with dividers, thegrain of the wood running as shown in Fig. 346. It is easier to mark out and saw one segment to shape,and use it as a pattern to mark out the others. … In making a pattern for a pulley (Fig. 347) hexagonalsegments are used to build up the rim, and the segments are so arranged that the joints in one layer are coveredand strengthened by having the segments of the nextlayer directly over the joint. In gluing up the stock to make the face-plate…
Woodwork (Manual training) · Cabinetwork
