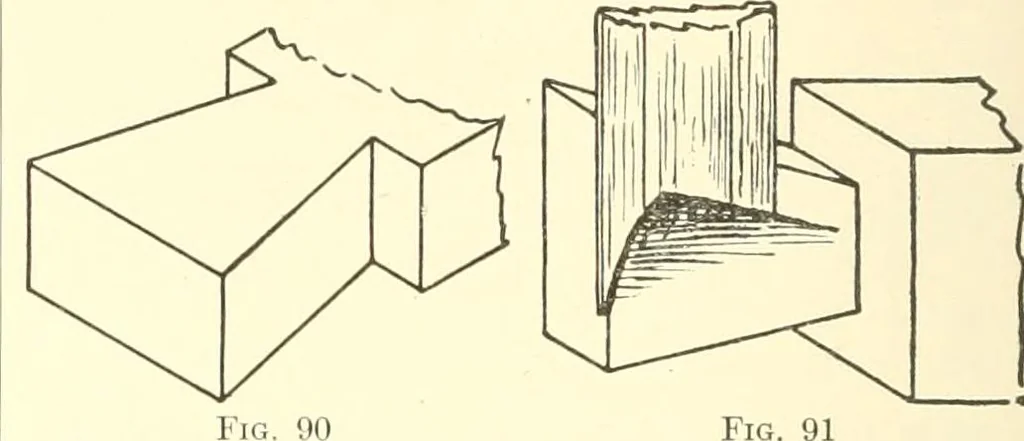

gt;; 1 11 1 ■^i<« ■^.../.f...j,zLf.i,y -^ --X- Fig. S9 -/i-- Middle Half-lap Dovetail Joint The same kind of construction—]ialf-la])i)ing—but a stronger and safer joint, with one of the timbers dove-tailed (Fig. 89). Plane your stock in one piece to exactwidth and full thickness (-^ in. over).… … Fig. 91 Or cut it half away first (Fig. 92), then mark out thetail with knife, saw the shoulders, and chisel on chiselingboard (Fig. 93).
