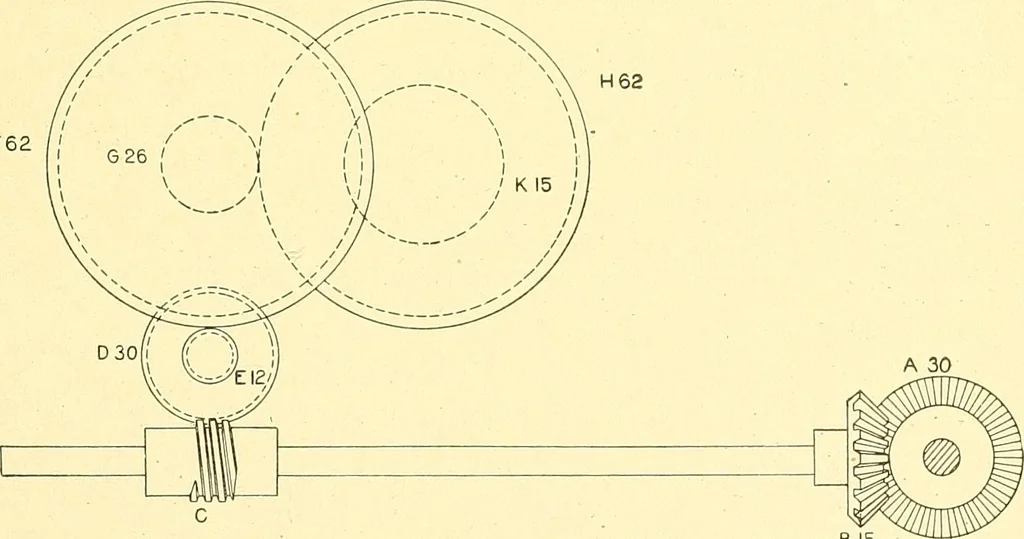

ulti-plied or divided, will give the picks or change gear required. Toobtain the constant, proceed as in the first calculation, leaving offthe change gear. ^ X X X E ^ ^^^ ■FT^CTTTTT^ = Constant 2,000 or 2 ^,, , , ^ ^ , B X D X F Change gear X Constant Picks -^ A X X X E Picks.Change. B X D X F =… … Fig. 100. Continuous Take-Up Motion. Continuous. Fig. 100 shows a continuous take up motion.A is a bevelled gear fixed on the bottom shaft, imparting motionto a second bevelled gear B. On the same shaft as B, is a singleworm C. This is geared into a worm gear D ; and through the 181 148 WEAVING.…
