Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 318

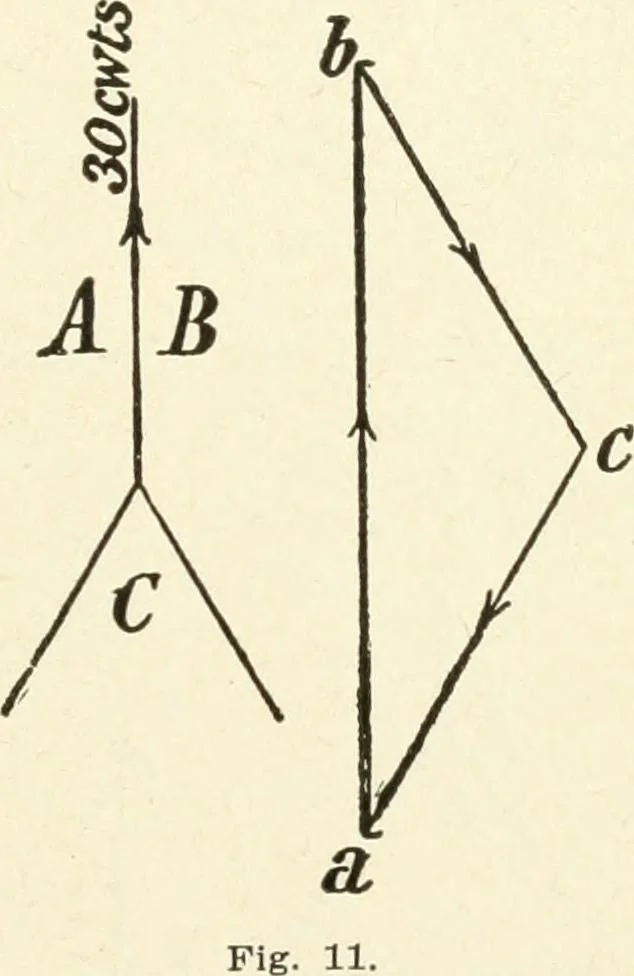

el to a b, b c, and c a respectively. Thus A B acts*roru the joint o; B C acts towards o; and C A actsfrom o. MECHANICS OF CARPENTRY 315 The following examples show the application of theseprinciples to simple practical questions. Example 3. A rope bears a tensile stress (pull) of30 cwts. Find the… … Fig. 11 shows the application of the triangle of forcesto the solution of this question, the answer giving thestress in each rope as 17.32 cwts. By going round thesides of the triangle in order, it will be seen that theforce in each of the three ropes acts from the joint. Example 4. A…
Carpentry
