Wright-Martin Aircraft Corporation, New Brunswick, N.J · New Brunswick, N.J., Wright-Martin Aircraft Corporation · leaf 113

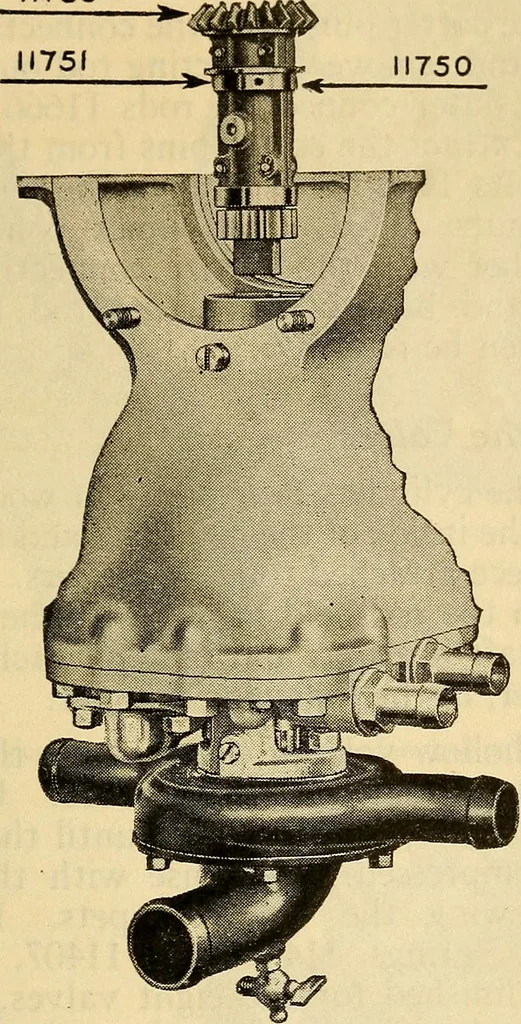

edown and allowed to rest on the cylinder covers. Toremove the above parts, remove 12 nuts 11303, thehose connections to the manifolds having already beenremoved when the engine was removed from the plane.Then, by removing the 5 nuts 1443, take off the magnetosupport bracket 13116 at the rear end… … Plate 44 Oil pump gear bearing and gear pump drive pinion assembly being removed from the lower crankcase. remove 24 nuts 11303 on the outer edge of the casethat hold the two cases together. The lower half canthen be removed by prying the two halves apart with ascrewdriver. Special lugs are cast on…
Airplanes
