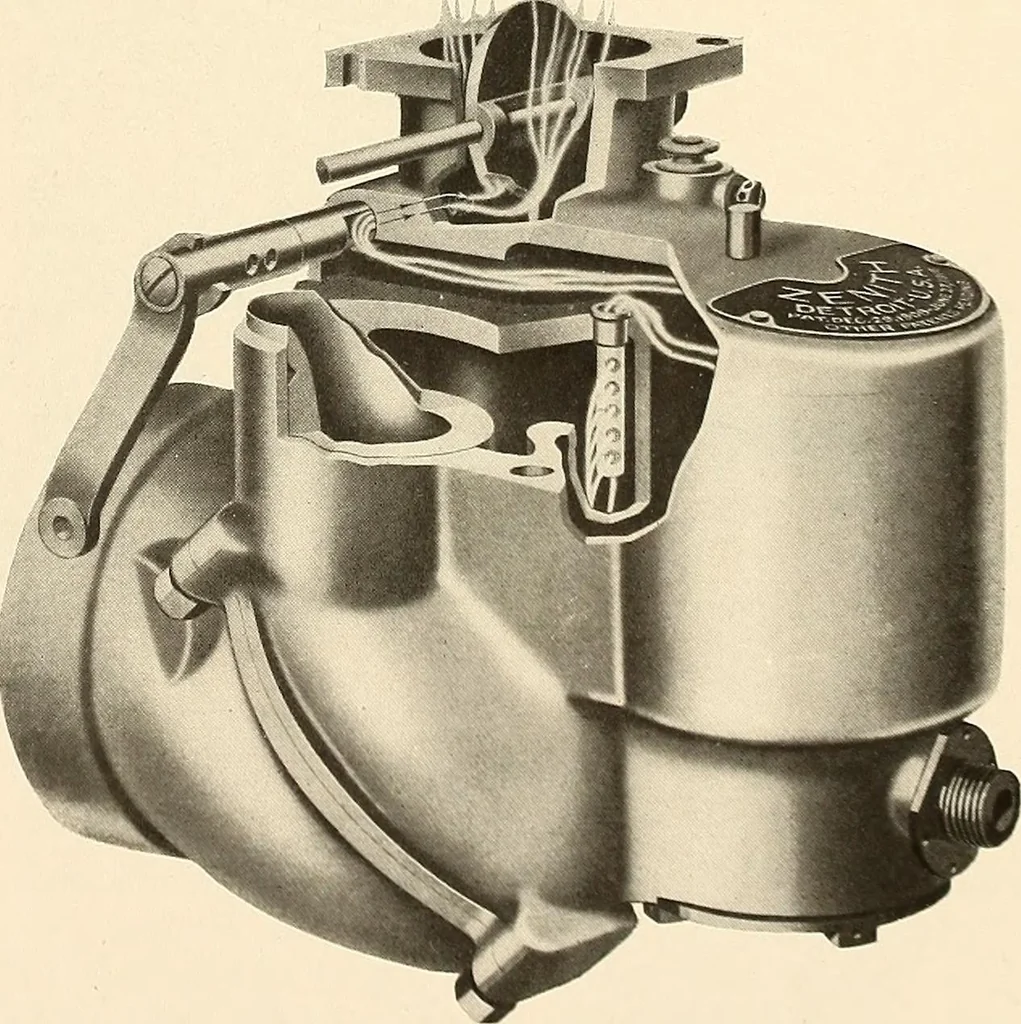

e majorpart of the supply comes through the inner tube. The idea of this construction is that the outer tubegives the correct flow for low speed but not enough for high. The inner tube gives enough for high speed butnot enough for low. By proportioning the two correctlythey compensate each other… … Diagram of mixture control action of Zenith D. C. 48carburetor 26 WRIGHT AERONAUTICAL ENGINES merits used in setting a carburetor to suit a particulardesign of engine. Idling System The compound nozzle just described takes care ofopen throttle running only. For idling there is a hole inthe body of…
